Tailgate closing control module, location - GF80.20-P-1101-01TA

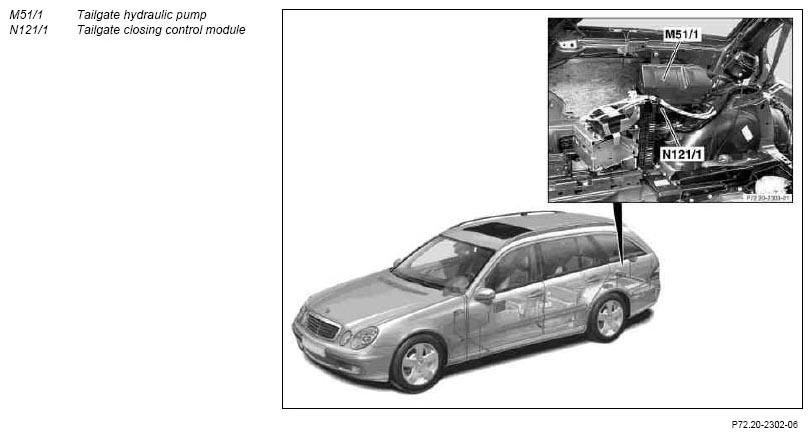

Fig 1: Locating Tailgate Closing Control Module

G07271220

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
