Anti-Theft & Central Locking System -- E350 (211.256)
>>
Basic Knowledge
>>
Opening angle recognition sensor, location - GF80.20-P-1103-01TA
Opening angle recognition sensor, location - GF80.20-P-1103-01TA

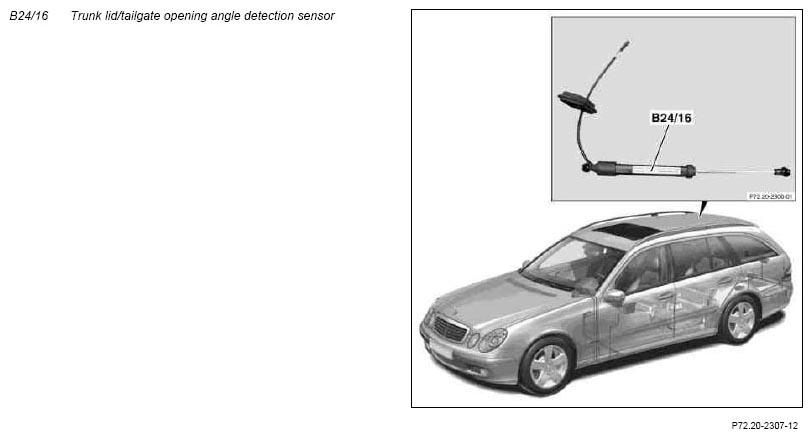

Fig 1: Locating Opening Angle Recognition Sensor
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
