Keyless go control module, location/purpose - GF80.61-P-4105TB

MODEL 211.0/2 with CODE (889) Keyless go

Keyless go rear module control module

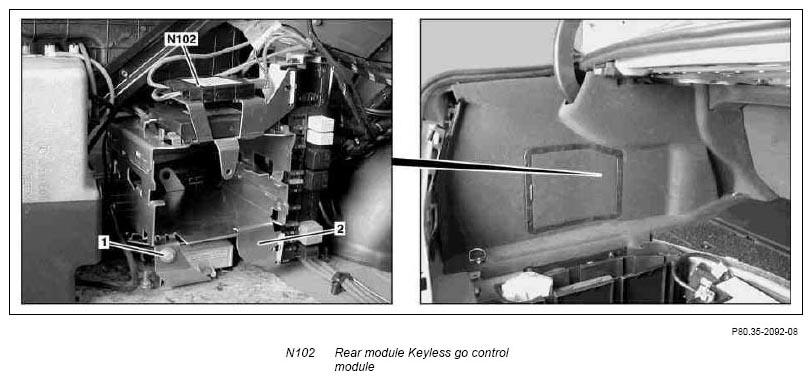

Fig 1: Locating Keyless Go Rear Control Module (Shown On Model 211)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on Model 211.0

Keyless go control module, location	The keyless go rear module control module (N102) is installed on left behind the side paneling of the trunk toward the front of the vehicle.
Keyless go control module, purpose		GF80.61-P-4102-02TB
