Keyless Go, location of components - GF80.61-P-0005-01TA

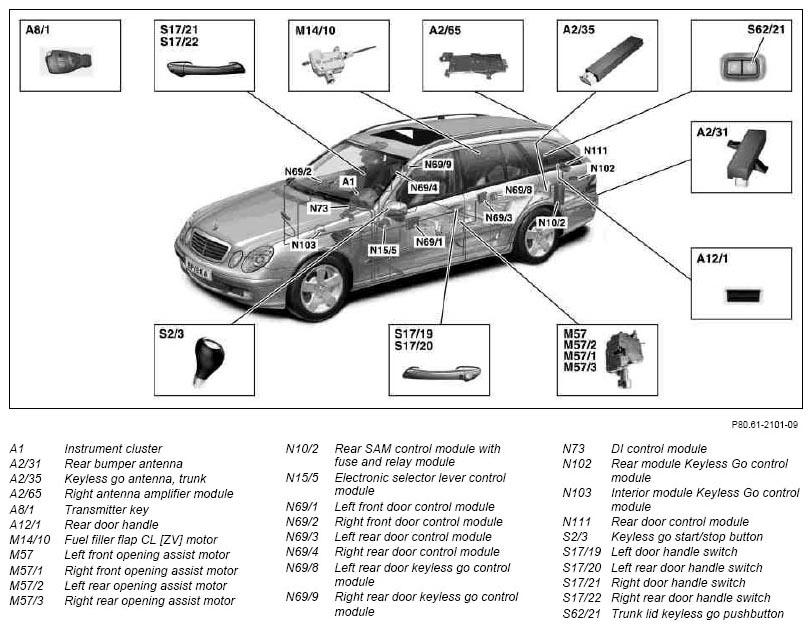

Fig 1: Locating Keyless Go Components

G07271237

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
