Glass breakage sensor, location/purpose/design/function - GF80.50-P-4107TA
MODEL 211.2 with code (551a) Anti-theft alarm system (ATA) with code (882b) Interior motion sensor (only with anti-theft alarm system)

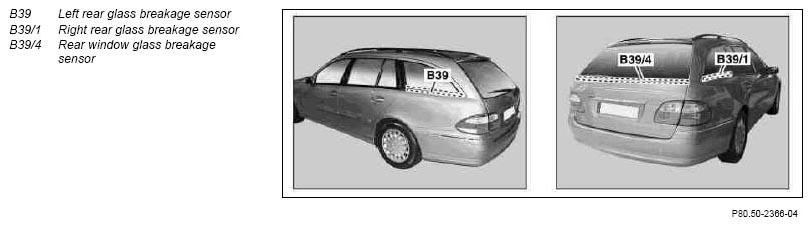

| Glass breakage sensor, location | The rear left/right glass breakage sensors (B39 and B39/1) are located in the bottom area of the rear side windows. The rear window glass breakage sensor (B39/4) is located in the bottom area of the rear window |
| Glass breakage sensor, purpose | Detect breakage of rear side windows and rear window from interruption in the line |
| Glass breakage sensor, design | A conductor loop is vapor-coated on the inside of the side windows and the rear window |
| Glass breakage sensor, function | Interruption of the conductor loop leads to signal loss. The interruption is sent to the rear SAM control module with fuse and relay module by the interior protection sensor via the overhead control panel control module. |
