Comfort closing/opening with air recirculation button, function - GF80.45-P-2009T

MODEL 211.0/2/6 up to model year 08/modification year 07

MODEL 211.0/2/6 as of model year 09/YoM 08 except CODE (494) USA version except CODE (460) Canada version

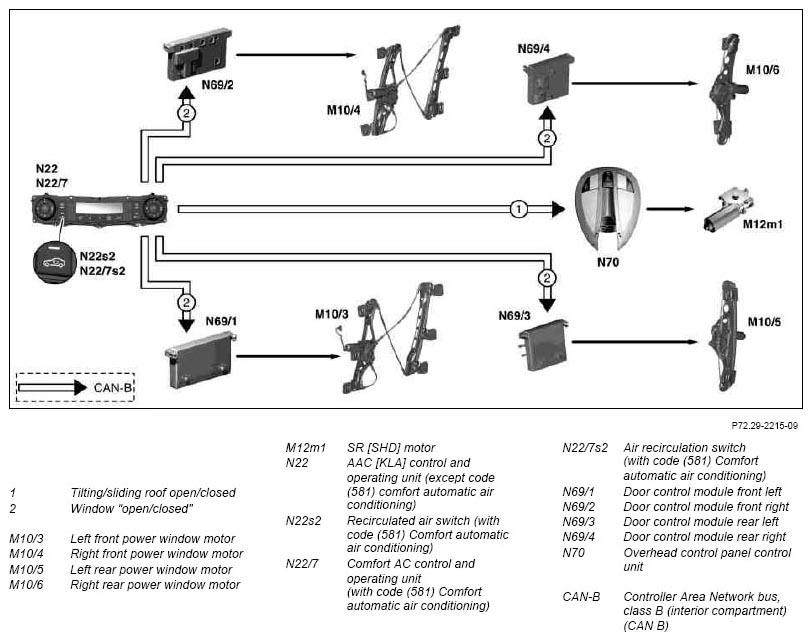

Fig 1: Comfort Closing/Opening With Air Recirculation Button Function Diagram

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown with code (414) Electric glass tilting/sliding roof

Convenience closing

Function requirements

Circuit 15 ON and
Window normalized and without active switch actuation
Voltage not to high or too low
Air recirculation switch actuated

Function

After actuating the air recirculation switch (N22s2) (except code (581) Comfort automatic air conditioning) or air recirculation switch (N22/7s2) (with code (581) Comfort automatic air conditioning) the AAC [KLA] control and operating unit (N22) (except code (581) Comfort automatic air conditioning) or comfort AAC control and operating unit (N22/7) (with code (581) Comfort automatic air conditioning) transmits the "Comfort closing" command via the interior CAN.

First the corresponding position of the power window in the front and rear doors is stored by the left front door control unit (N69/1), right front door control unit (N69/2), left rear door control unit (N69/3), right rear door control unit (N69/4). Then the front and rear door windows are closed automatically. The excess force limiter is activated.

On vehicles with code (414) electric glass titling/sliding roof, the position of the tilting/sliding roof is stored by the overhead control panel control unit (N70) and the tilting/sliding roof is closed.

On vehicles with code (413) Panoramic sliding roof, the position of the panoramic sliding roofs is stored by the overhead control panel control unit (N70) and the panoramic sliding roof is closed.

Abort conditions

Denormalization of tilting/sliding roof or panoramic sliding roof
Manual actuation during comfort closing function
Blockage detection
Failure of CAN message for t > 50 ms (CAN = Controller Area Network)
Actuation of excess force limiter
Circuit 15 OFF

If "Closing" via the air recirculation switch is initiated again during the "Opening" sequence before the stored position is reached, then the initially stored opening position is retained.

On vehicles with code (414) electric glass titling/sliding roof, the stored position of the tilting/sliding is actuated. On vehicles with code (413) Panoramic sliding roof the stored position of the panoramic sliding roof is actuated.

Convenience opening

Function requirements

Comfort closing air recirculation switch

Function

When the air recirculation switch is pressed again, the corresponding front and rear door windows are opened until the stored position is reached.

Abort conditions

The interruption conditions are the same as for the comfort closing function.

If, after comfort closing, one of the windows, the tilting/sliding roof or the panoramic sliding roof is opened manually, this not considered during comfort opening.

On model 211.6 the number of power window motors and door control units in the rear can vary depending on the equipment and special body.

Power windows convenience opening via air recirculation mode button, function		GF72.29-P-3010T
Convenience closing of power windows via air recirculation mode button, function		GF72.29-P-3011T
Tilting/sliding roof convenience opening with recirculated air button, function	Model 211.0/2 with code (414) Electric glass titling/sliding roof	GF77.20-P-2016T
Tilting/sliding roof convenience closing with recirculated air button, function	Model 211.0/2 with code (414) Electric glass titling/sliding roof	GF77.20-P-2017T
Panorama sliding roof convenience opening with recirculated air button, function	Model 211.0 with code (413) Panorama sliding roof.	GF77.20-P-2019T
Convenience opening panorama sliding roof with recirculated air button, function	Model 211.0 with code (413) Panorama sliding roof.	GF77.20-P-2018T
