Central locking (CL), location of components - GF80.20-P-0005-01TA

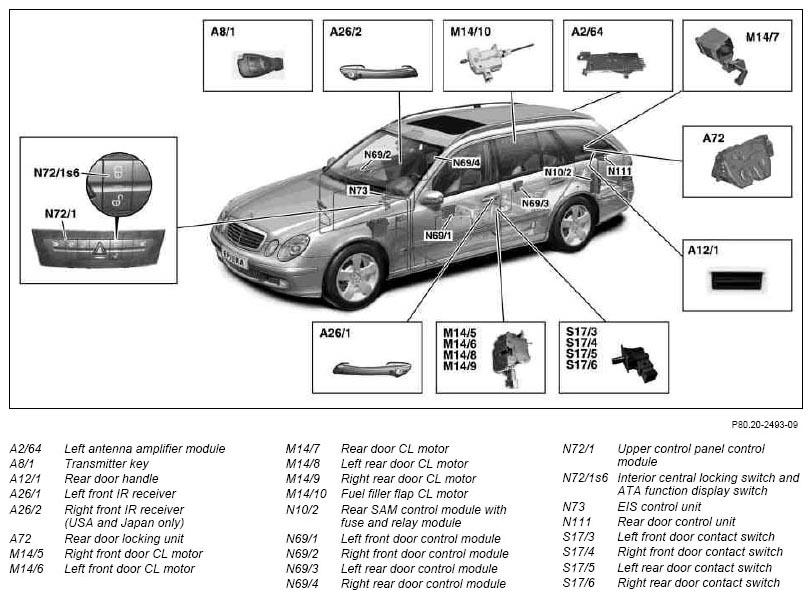

Fig 1: Locating Central Locking Components

G07271216

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
