Anti-Theft & Central Locking System -- E350 (211.256)
>>
Basic Knowledge
>>
Central locking (CL), interlinkage of electric components - GF80.20-P-0005-03TA
Central locking (CL), interlinkage of electric components - GF80.20-P-0005-03TA

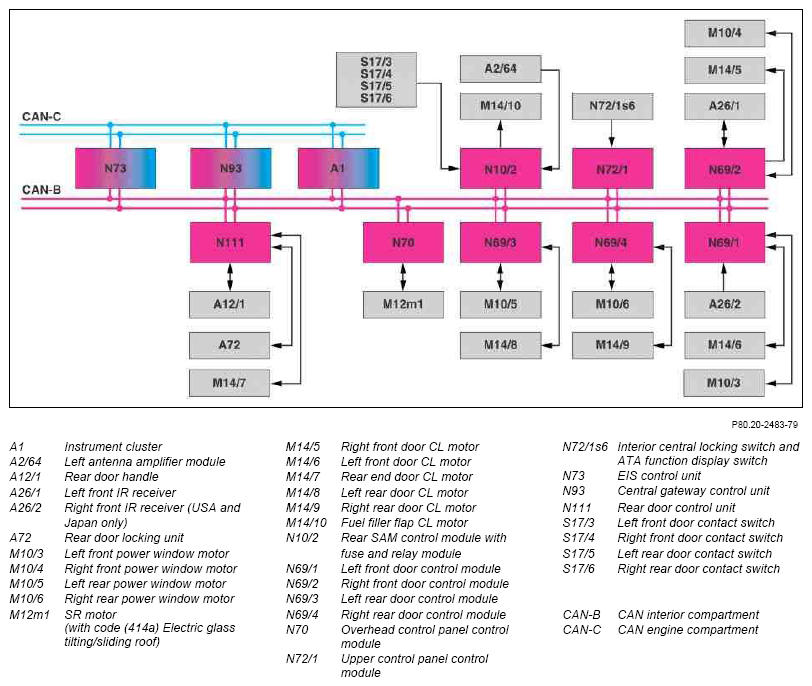

Fig 1: View Of Central Locking Interlinkage Of Electric Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
