Anti-Theft & Central Locking System -- E350 (211.256)
>>
Basic Knowledge
>>
Anti-theft alarm system (ATA), block diagram - GF80.50-P-0001-01TA
Anti-theft alarm system (ATA), block diagram - GF80.50-P-0001-01TA

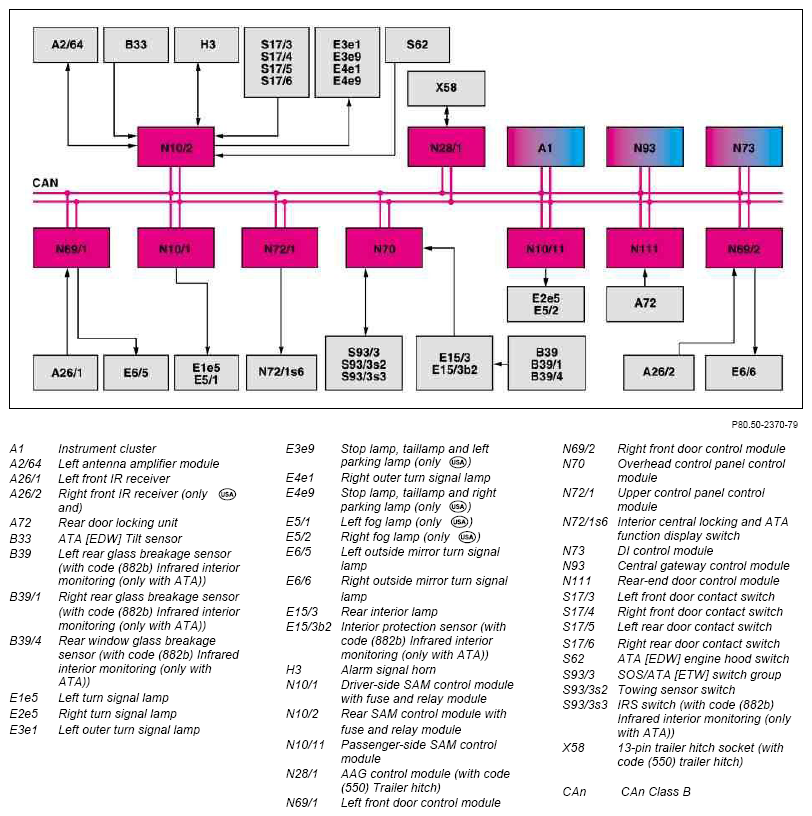

Fig 1: Anti-Theft Alarm System Block Diagram
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
