Anti-theft alarm (ATA), location of components - GF80.50-P-0001-02TA

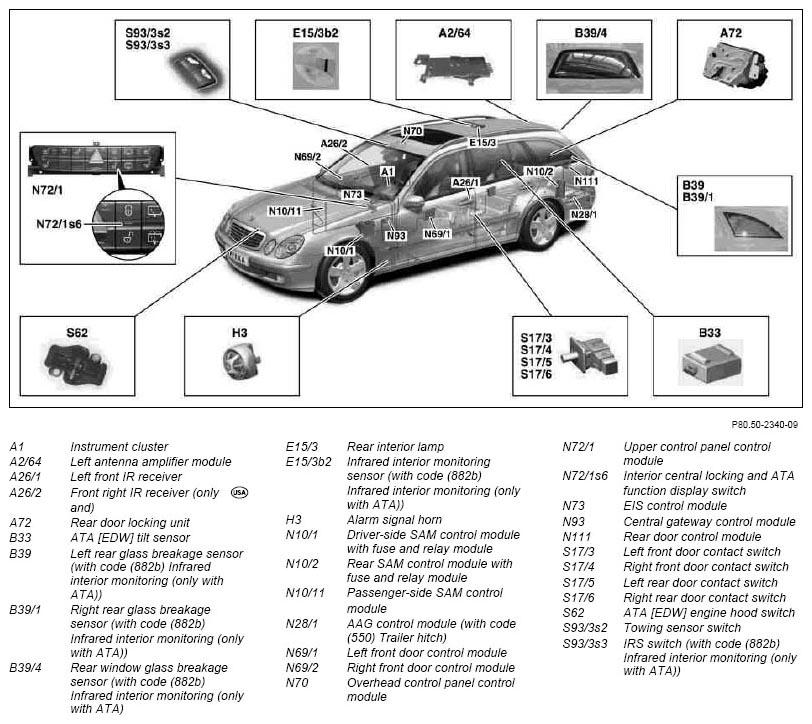

Fig 1: Locating Anti-Theft Alarm Components

G07271233

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
