Remove/install underbody paneling - AR61.30-P-1001T

MODEL 211, 219

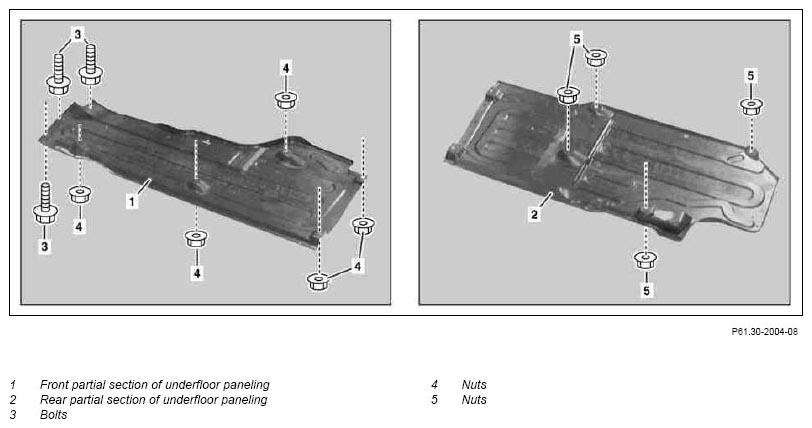

Fig 1: Identifying Underbody Paneling Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on left underfloor paneling

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Raise vehicle with vehicle lift	Adapter kit	*203589023100
2	Remove bolt (3)
3	Unscrew nuts (4) and remove front underfloor paneling section (1)
4	Unscrew nuts (5) and remove rear underfloor paneling section (2)	The rear partial section of underfloor paneling can also be removed separately.
5	Install in the reverse order

Fig 2: Identifying Adapter Kit (203 589 02 31 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
