Remove/install rear door power window switch - AR72.29-P-0002T

MODEL 211.0/2

Shown on left rear door, model 211.0

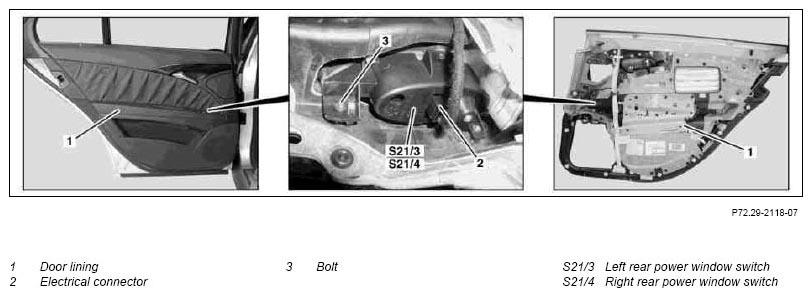

Fig 1: Identifying Rear Door Power Window Switch Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove door lining (1) from rear door	On vehicles without code (Z04) Light armoring	AR72.12-P-1010T
		On model 211.065/070 with code (Z04) Light armoring	AR72.12-P-1010TG
2	Separate electrical connector (2)
3	Unscrew bolt (3).		*WH58.30-Z-1058-06A
4	Remove left rear power window switch (S21/3) or right rear power window switch (S21/4) from door lining (1)
5	Install in the reverse order

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1058-06A	TORX offset screwdriver T10
