Remove/install rear door lining - AR72.12-P-1010T

MODEL 211.0/2

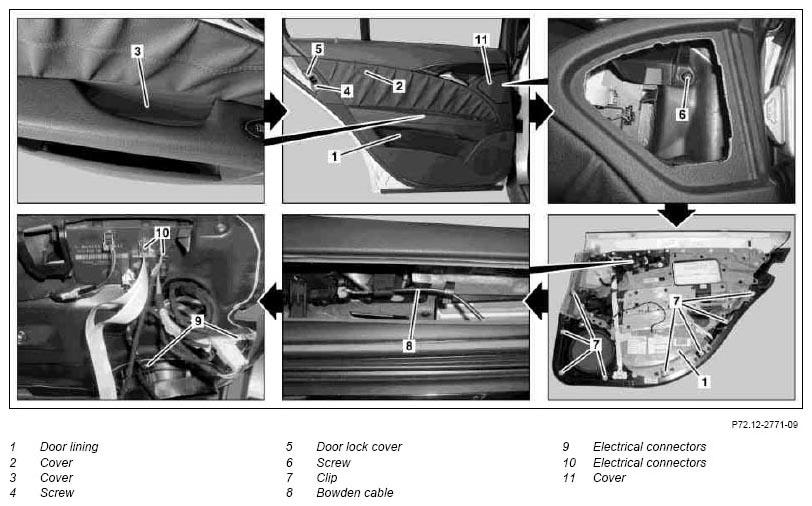

Fig 1: Identifying Rear Door Lining Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1.1	Remove ashtray in rear door	Vehicle with code 301 Ashtray/smoker package	AR72.12-P-1041T
1.2	Install assembly wedge from front behind cover (11), unclip cover (11) and remove	Vehicle without code 301 Ashtray package/smoker package
			*110589035900
2	Unclip cover (2) from door lining (1) and remove bolt underneath
3	Unclip cover (3) with assembly wedge and remove bolts underneath	Two bolts are located below the cover (3).
			*110589035900
4	Remove screw (4) and take off door lock cover (5)
5	Remove bolt (6)
6	Unclip door lining (1) from clips (7) on rear door with assembly wedge	Position assembly wedge directly next to clips (7).
		Installation:  Replace damaged clips (7).	*110589035900
7	Unhinge Bowden cable (8)
8	Separate electrical connectors (9, 10) and remove door lining (1)
9	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
