Remove/install outer sealing rail on rear door - AR72.12-P-1014T

MODEL 211.0/2

Shown on model 211.0

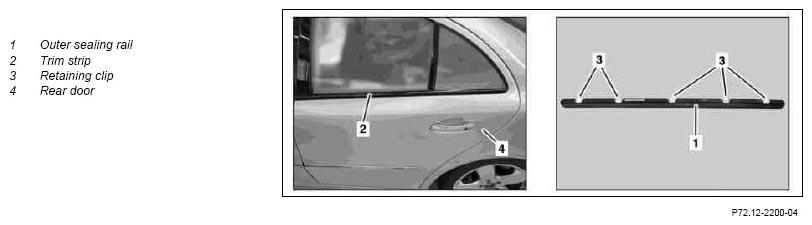

Fig 1: Identifying Rear Door Outer Sealing Rail Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Completely open crank window in rear door
2	Press trim strip (2) off of outer sealing rail (1) with mounting wedge and remove	Carefully press on trim strip (2) to prevent damaging paint
			*110589035900
3	Unclip outer sealing rail (1) on retaining clips (3) form rear door (4) with mounting wedge and remove	Carefully unclip outer sealing rail (1) to prevent damaging paint
		Installation:  Replace damaged retaining clip (3).	*110589035900
4	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
