Remove/install automatic rear-end door hydraulic unit - AR72.20-P-7500T
MODEL 211.2 with CODE (890) Automatic rear-end door
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Remove headliner | AR68.30-P-4300TD | |

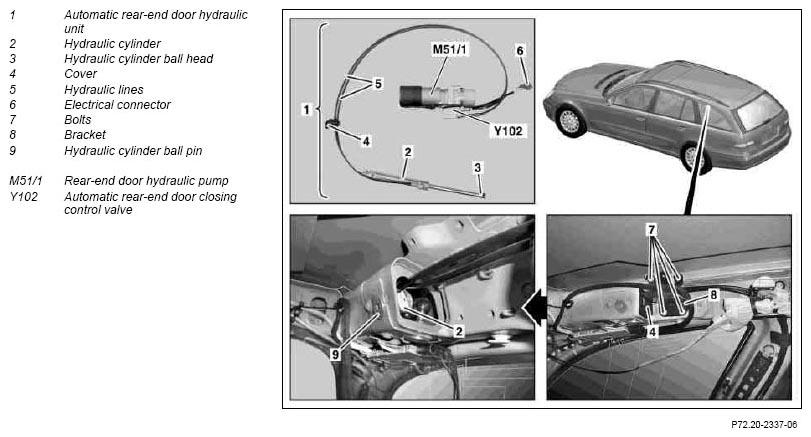

| 2 | Unscrew bolts (7) and remove bracket (8) | ||
| 3 | Unclip cover (4) and slide back hydraulic lines (5) of hydraulic cylinder (2) | *110589035900 | |
| 4 | Unclip front hydraulic cylinder (2) from hydraulic cylinder ball journal in cargo space hinge hole with screwdriver | ||
| 5 | Unscrew hydraulic cylinder ball journal (9) | *BA72.20-P-1015-02A | |

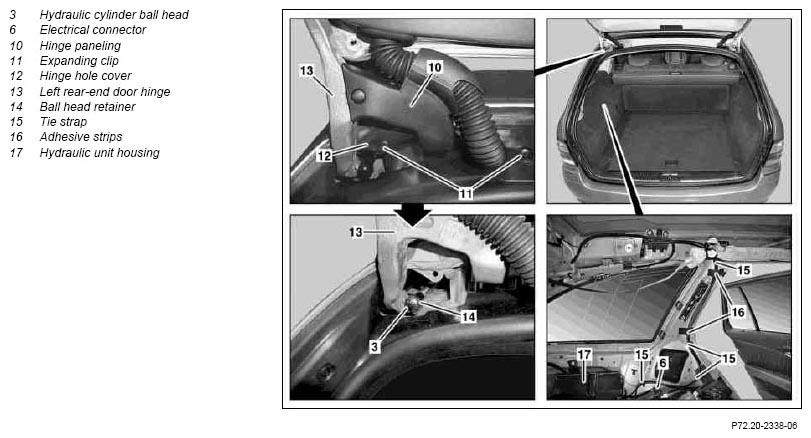

| 6 | Expose hydraulic lines (5) of side wall Remove tie strap (15) and strips of adhesive tape (16). | ||
| 7 | Unplug electrical connector (6) | ||
| 8 | Remove hinge paneling (10) from left rear-end door hinge (13) | ||
| 9 | Remove expanding clips (11) | ||
| 10 | Remove hinge hole cover (12) between vehicle roof and rear spoiler toward outside | ||
| 11 | Lift ball head retainer (14) and unclip hydraulic cylinder ball head (13) from left rear-end door hinge (13) | ||
| 12 | Pull hydraulic cylinder (2) out toward front | ||
| 13 | Open hydraulic unit housing (17) | ||
| 14 | Remove rear-end door hydraulic pump (M51/1) remove hydraulic unit housing (17) with automatic rear-end door lock control valve (Y102) | ||
| 15 | Remove automatic rear-end door hydraulic unit (1) from vehicle | ||
| 16 | Install in the reverse order |
REAR-END DOOR
| Number | Designation | Model 211.2 | |
|---|---|---|---|
| BA72.20-P-1015-02A | Hydraulic cylinder ball journals on body | Nm | 32 |
