Adjust front door crank window - AR72.10-P-1950T

MODEL 211.0/2/6

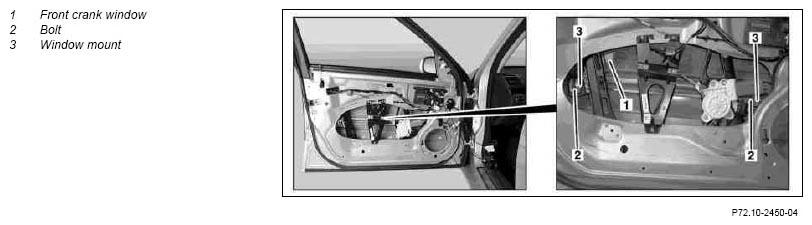

Fig 1: Identifying Front Door Crank Window Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
1	Remove door foil from front door	Only remove door foil until access cover in inner door panel is accessible.	AR72.10-P-1010T
2	Remove switch group of power window on door lining		AR72.29-P-0110T
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
3	Attach ground line to the vehicle electrical system battery
	Notes on battery		AH54.10-P-0001-01A
4	Create contacts for switch of power window at front door control unit
	Adjust
5	Move front crank window (1) to assembly position using power window switch	Until the bolts (2) are accessible through the access cover in the inner door panel.
6	Slightly release bolts (2) at window mounts (3)	Loosen bolts (2) only so that front crank window (1) can still be moved
7	Completely move front crank window (1) upward	Up to stop. At the same time, the front crank window (1) is secured in the window mounts (3).
8	Move front crank window (1) to assembly position using power window switch	Until the bolts (2) are accessible through the access cover in the inner door panel.
9	Tighten bolts (2)		*BA72.10-P-1009-01AB
10	Completely move front crank window (1) downward
	Install
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
11	Detach ground line at the vehicle electrical system battery
	Notes on battery		AH54.10-P-0001-01A
12	Disconnect switch of power window at front door control unit
13	Install switch group of power window at door lining		AR72.29-P-0110T
14	Install door foil on front door		AR72.10-P-1010T
15	Normalize power window	See Operating Instructions
16	Perform function check

FRONT DOOR

Number	Designation		Model 211
BA72.10-P-1009-01AB	Bolt, window to front power window	Nm	8
