Wiping of rear window, function - GF82.30-P-3007TM

MODEL 211.2 as of 1.6.06 except CODE (494) USA version except CODE (498) Japan version

MODEL 211.2 as of 1.7.06 with CODE (494) USA version with CODE (498) Japan version

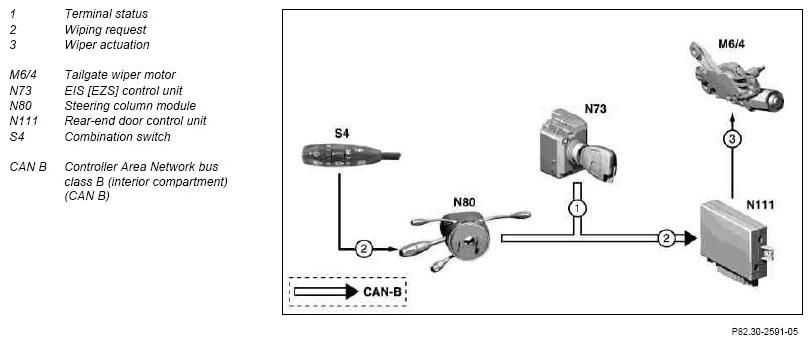

Fig 1: Wiping Of Rear Window Function Chart

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function requirements:

• Circuit 15R ON

Function

The request for intermittent wipe is read in during forward travel by the steering column module when the 2nd ring on the combination switch is turned to position "I" (interval) and transmitted via CAN-B to the rear door control unit, which actuates the rear-end door wiper motor (5 s interval).

The rear-end door wiper system is a reverse wiping system. This means that the integrated electronics in the rear-end door wiper motor automatically controls the edge change of the wiper blade after its has reached its rest position (start position) or its end position.
