Alarm, Entertainment, Lighting, Switches & Wiper/Washer -- Basic Knowledge -- E350 (211.256)
>>
Basic Knowledge
>>
Wiper system (WSA), location of components - GF82.30-P-0003-01T
Wiper system (WSA), location of components - GF82.30-P-0003-01T

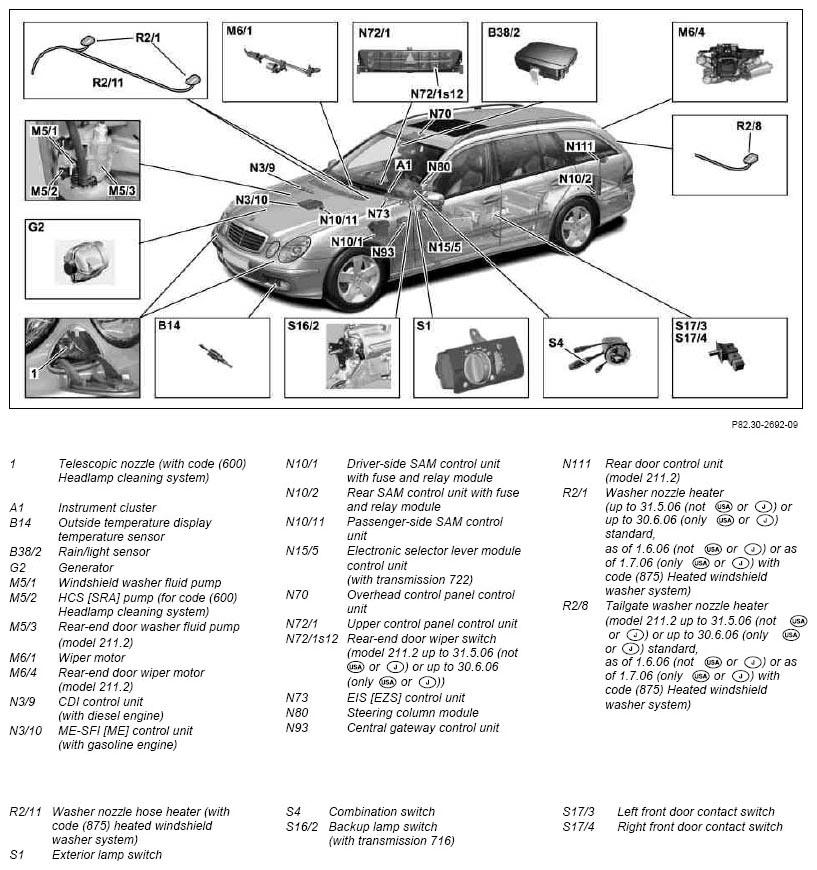

Fig 1: Locating Wiper System (WSA) Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Shown on model 211.2
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
