Wiper system (WSA) block diagram - GF82.30-P-0003-04T

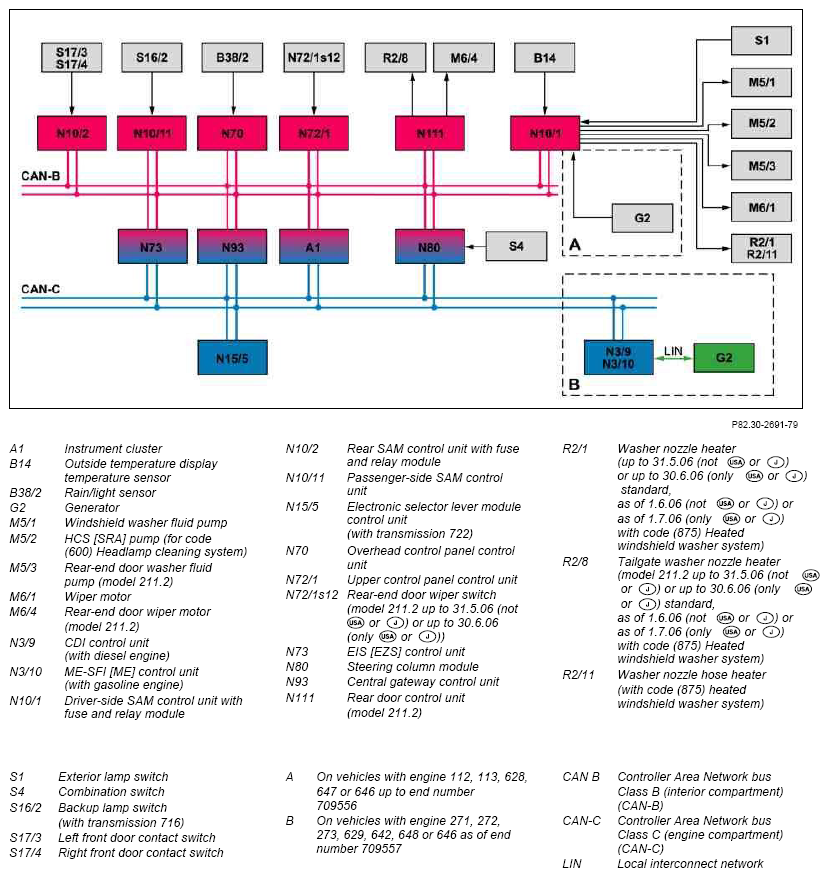

Fig 1: Wiper System (WSA) Block Diagram

G07285050

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
