Special taxi system, networking of components - GF82.25-P-0010-02T

15.03.07

The document has been updated to this date and will no longer be subject to revision.

Networking

The two illustrations portray the network configurations employed to link the vital components in the special taxi system with taxi emergency alarm system.

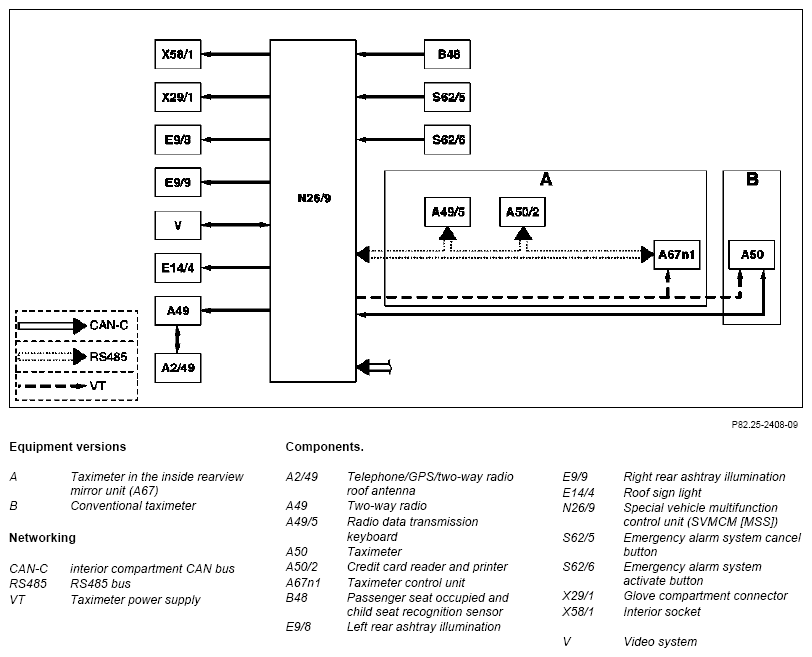

Fig 1: Networking Of Special Taxi System Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Equipment versions

Networking

Components.

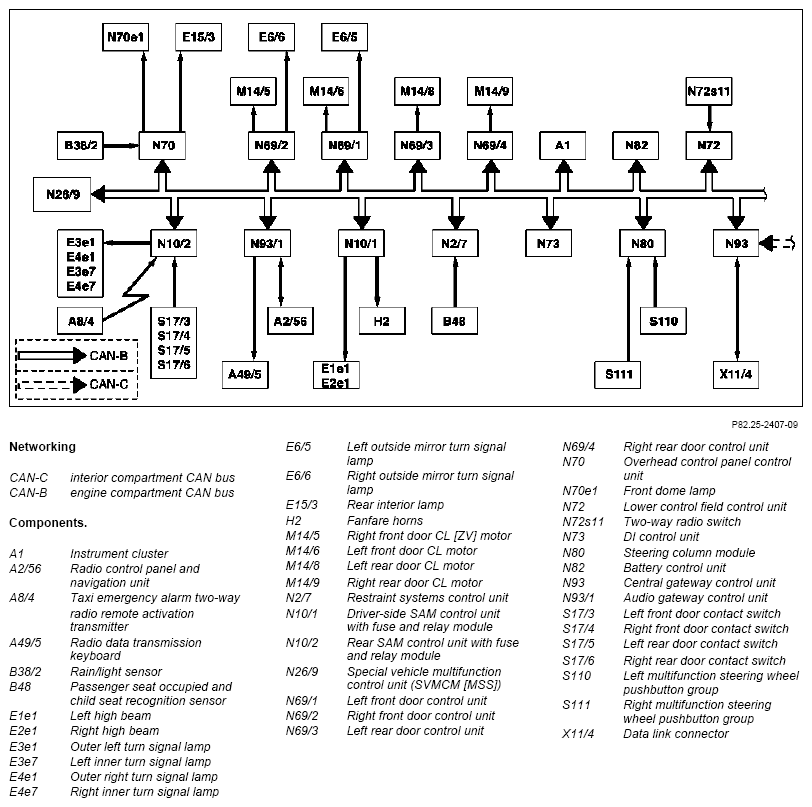

Fig 2: Networking Of Special Taxi System Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Networking

Components.
