Inside door handle illumination, location/task - GF82.20-P-4012T

MODELS 211.0/2/6

Shown on model 211.0

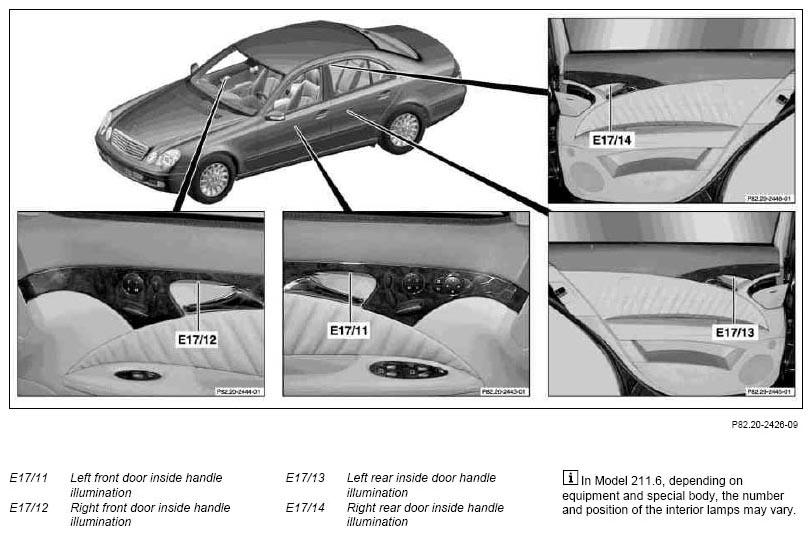

Fig 1: Locating Inside Door Handle Illumination Lights
G07285015Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Inside door handle illumination, location The illumination is located in each inside door handle.
Inside door handle illumination, task The left front door inside handle illumination (E17/11), right front door inside handle illumination (E17/12), left rear door inside handle illumination (E17/13) and right rear door inside handle illumination (E17/14) make it easier to find the inside door handles in the dark.
