Footwell lamps, location/task - GF82.20-P-4013T
MODELS 211.0/2/6
Shown on model 211.0

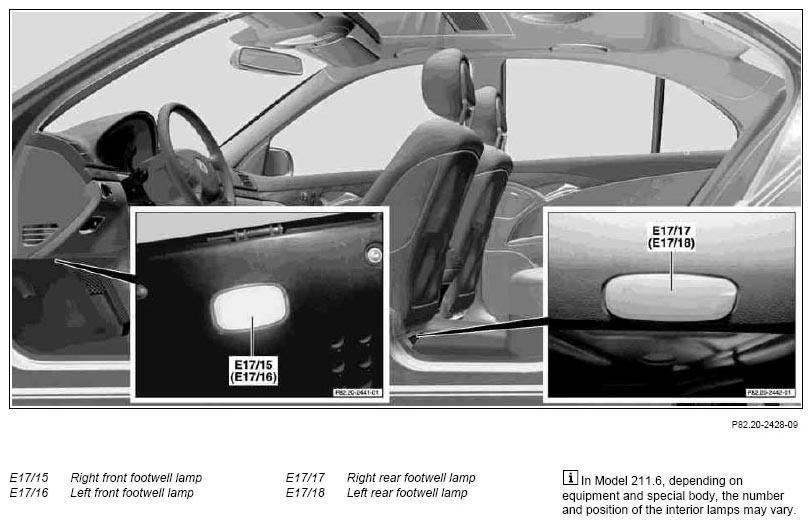

| Footwell lamps, location | The left front footwell lamp (E17/16) and the right front footwell lamp (E17/15) are located in the lower cover of the dashboard, the left rear footwell lamp (E17/18) and the right rear footwell lamp (E17/17) are located in the lower cover of the front seats. |
| Footwell lamps, task | The footwell lamps are responsible for illuminating the footwell in the dark in front of the seats when getting in and out and supplement the interior lights. |
