Audio system, location of components - GF82.60-P-0004-01TM

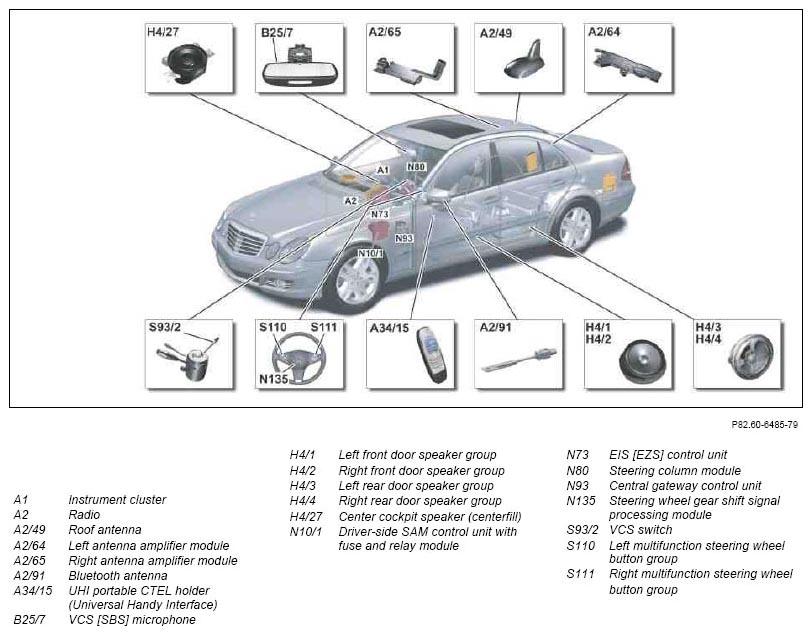

Fig 1: Locating Audio System Components - Model 211.0 With Code 510 Audio 20 With CD Changer

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 211.0 with code 510 Audio 20 with CD changer shown

Fig 2: Locating Audio System Components - Model 211.0 With Code 523 MB Audio 20 Radio

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 211.0 with code 523 MB Audio 20 radio shown

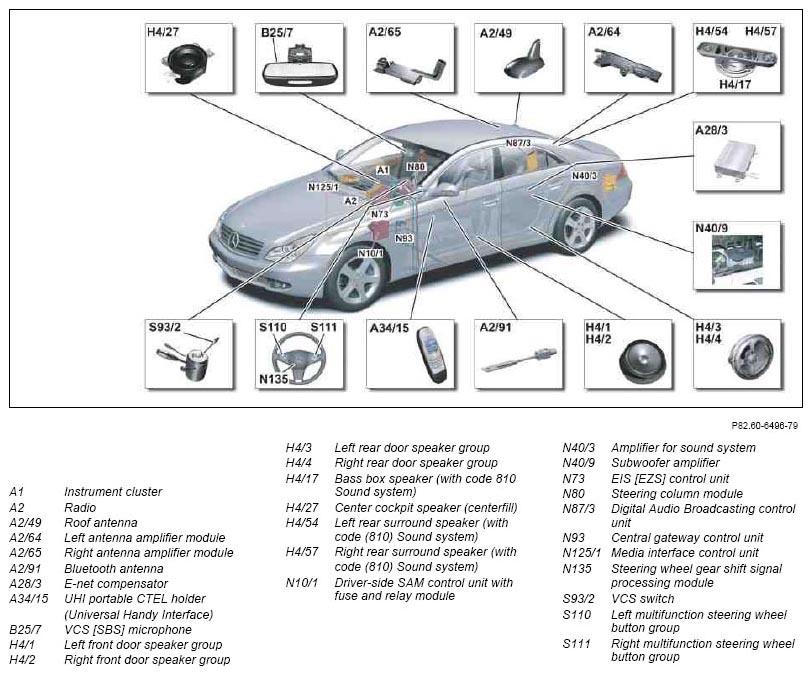

Fig 3: Locating Audio System Components - Model 219.3 With Code 510 Audio 20 With CD Changer

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 219.3 with code 510 Audio 20 with CD changer shown
