Adjusting headlamps when driving abroad - AH82.10-P-0001-01A

Model 164, 169, 171, 203, 204.0/2/9, 207, 209, 211, 212, 215, 216, 219, 220, 221, 230, 245, 251

Headlamp with projection system (with halogen or xenon headlamp)

The headlamp conversion is generally mechanical. Pressing a lever changes the position of a movable covering. The movable covering then covers up the part of the light beam which-through corresponding projection - is responsible for illuminating the edge of the roadway.

The lever for this purpose is located next to the bulb and can be accessed after removing the corresponding cover on the headlamp housing.

The lever's location, version and actuation are dependent on the manufacturer of the headlamp and the model.

Observe the safety regulations pertaining to handling high-voltage parts on xenon and bi-xenon headlamps.

The setting must be checked after the adjustment using a headlamp aimer.

With model 211 with code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic), the headlamps are adjusted electronically using Star Diagnosis.

On model 216 , the headlamps are adjusted electronically using Star Diagnosis.

On model 204.9 with halogen headlamps, the headlamps are adjusted using the headlamp range controller.

The headlamp setting must be checked before adjustment using a headlamp aimer.

On model 212 up to 30.11.09 (YoM 09/2) with bi-xenon headlamps the headlamp conversion is done electronically with the aid of STAR DIAGNOSIS.

On model 207 and model 212 as of 1.12.09 (YoM 09/2) with bi-xenon headlamps the headlamp conversion is done in the OBC by way of the instrument cluster.

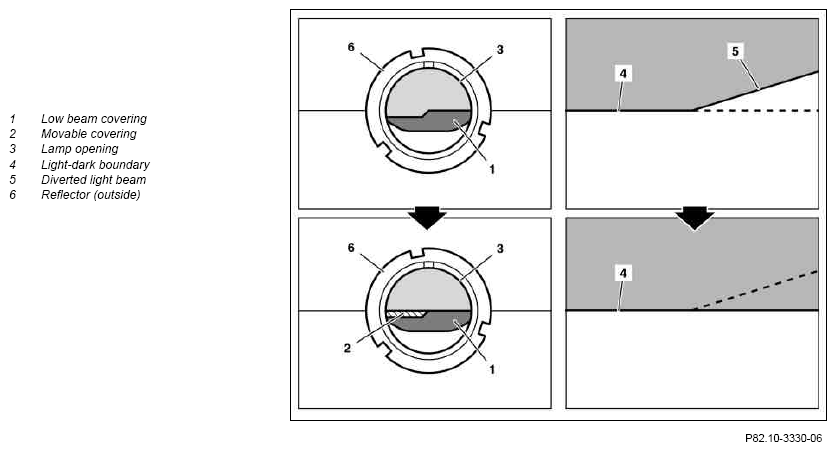

Changing the light beam after adjusting the movable cover (2) (view from behind through the lamp aperture (3).

The overview shows the status for right-hand traffic.

Fig 1: View Of Status For Right-Hand Traffic

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

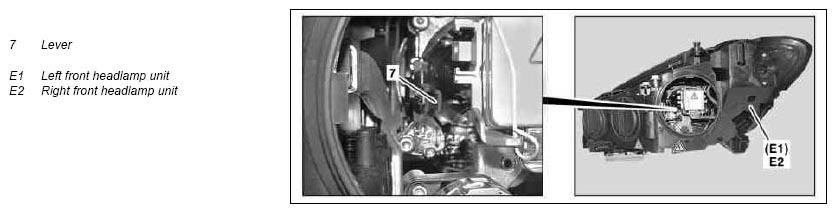

Model 164 with halogen headlamps

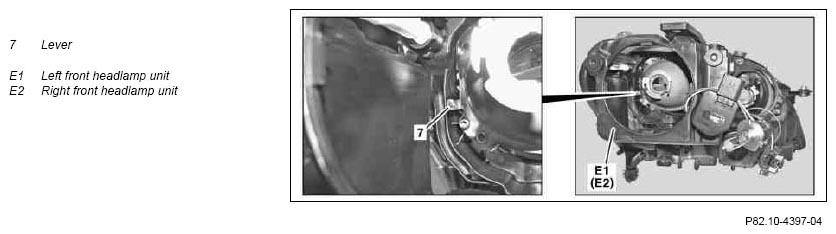

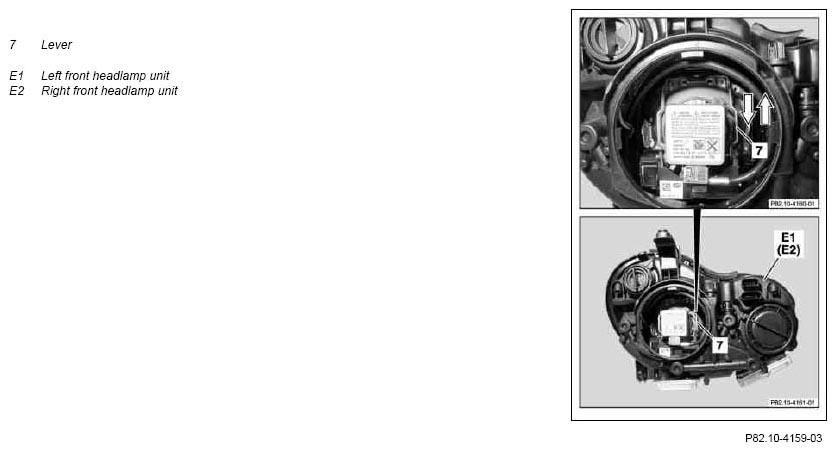

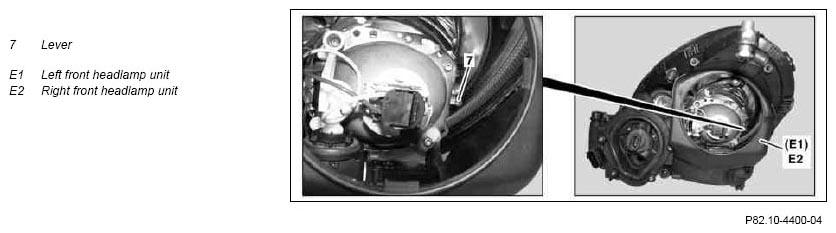

Fig 2: Locating Headlamp Unit Lever - Model 164

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

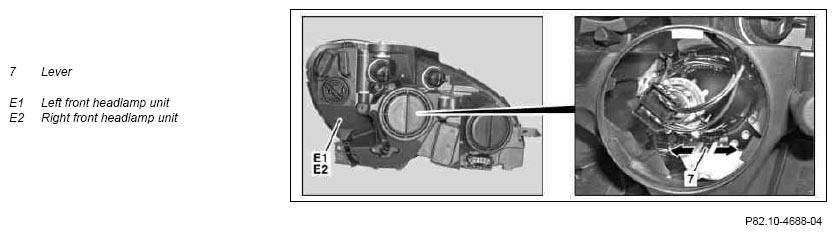

Model 164 with xenon headlamps

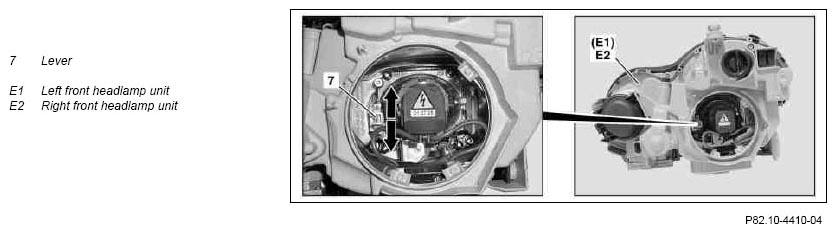

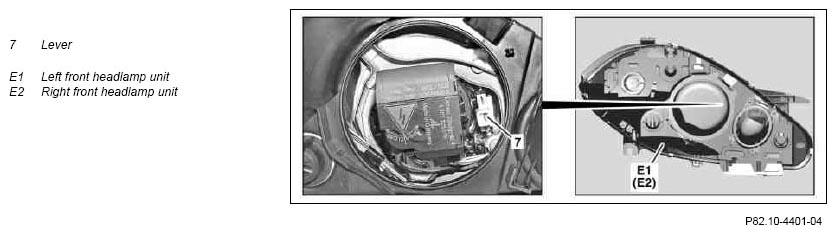

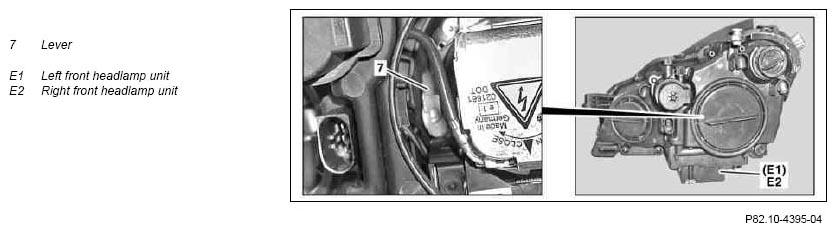

Fig 3: Locating Xenon Headlamp Unit Lever - Model 164

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

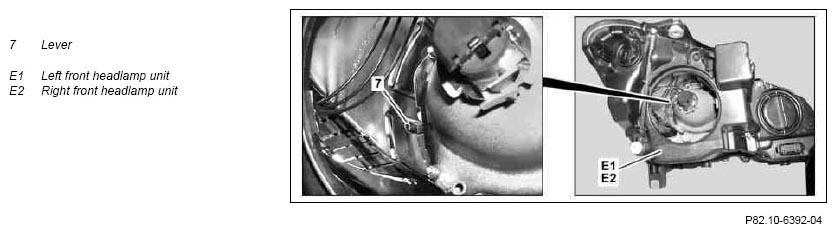

Model 169 with halogen headlamps

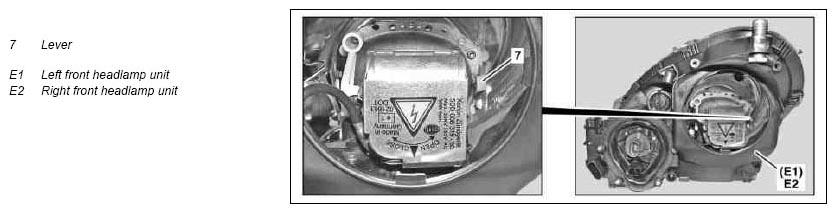

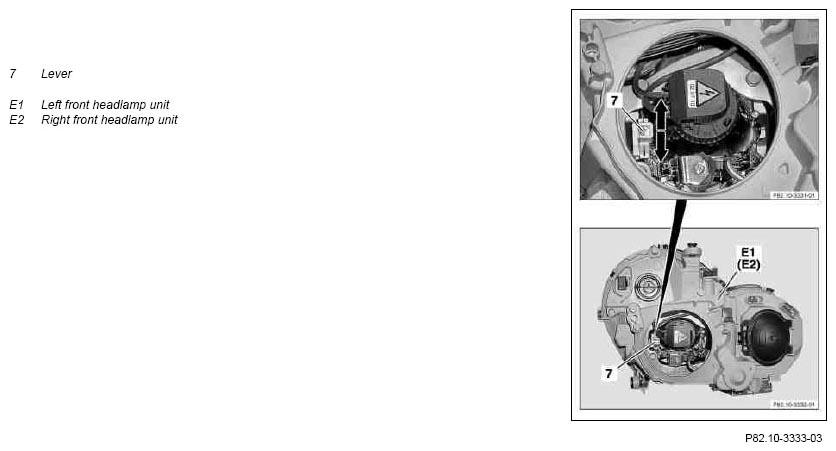

Fig 4: Locating Headlamp Unit Lever - Model 169

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

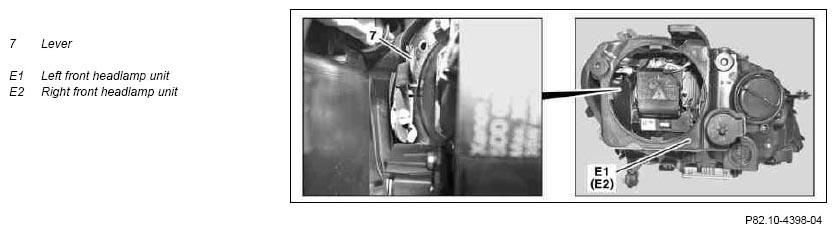

Model 169 with xenon headlamps

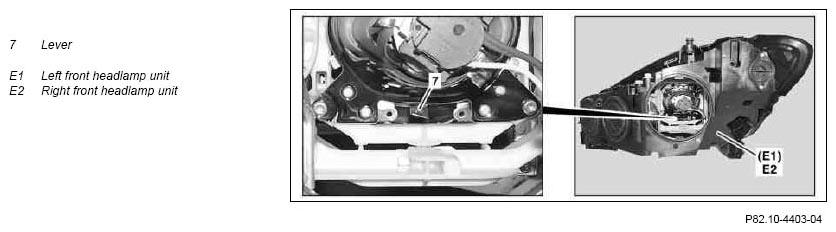

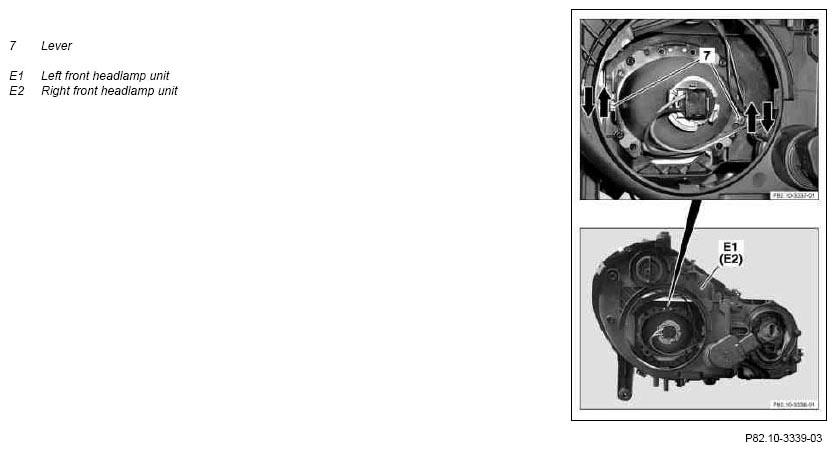

Fig 5: Locating Xenon Headlamp Unit Lever - Model 169

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

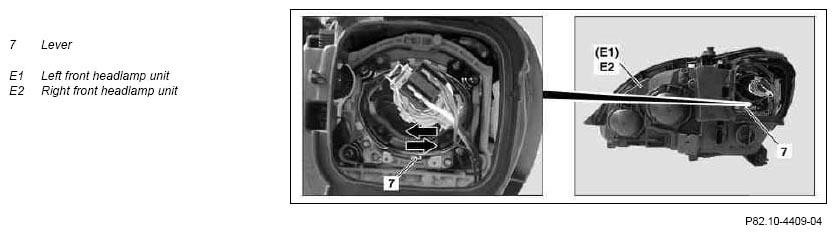

Model 171 with halogen headlamps

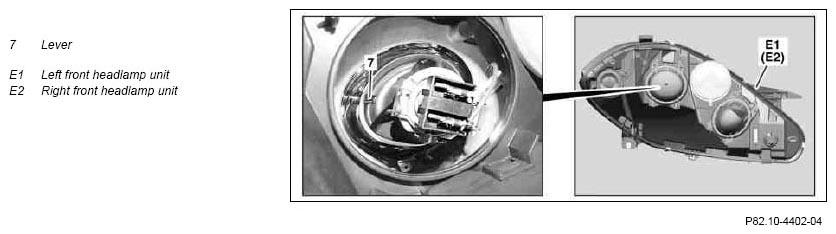

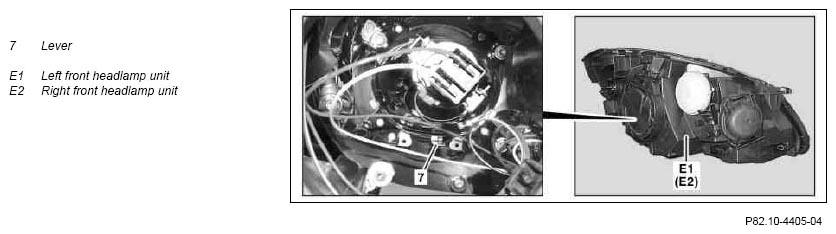

Fig 6: Locating Headlamp Unit Lever - Model 171

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

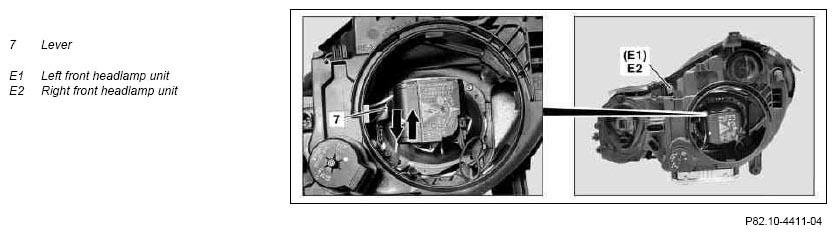

Model 171 with xenon headlamps

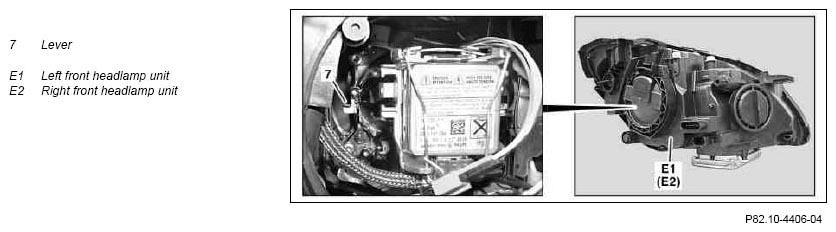

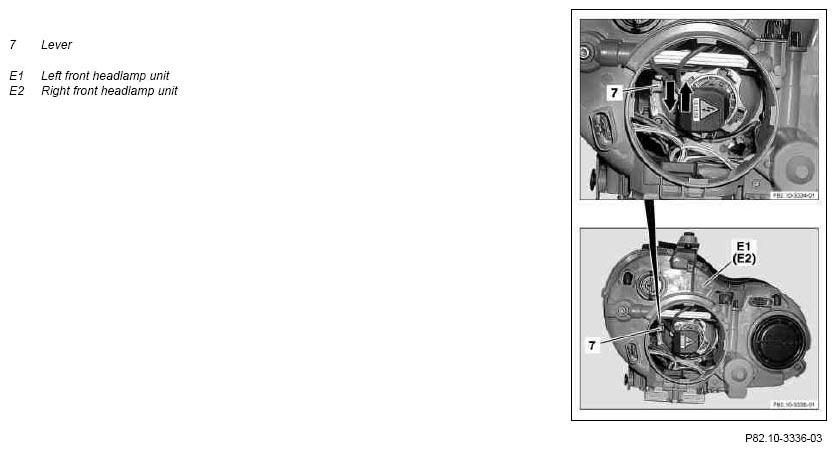

Fig 7: Locating Xenon Headlamp Unit Lever - Model 171

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

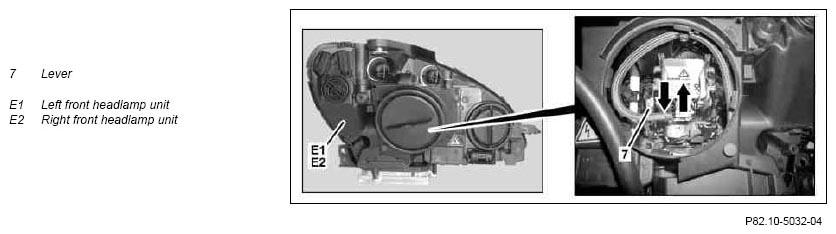

Model 203.0/2 with xenon headlamps, Model 203.7## #A with xenon headlamps, Model 203.7## #E up to 035817 with xenon headlamps

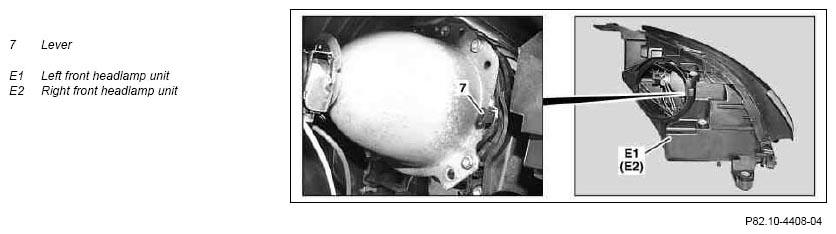

Fig 8: Locating Xenon Headlamp Unit Lever - Model 203.0/2, Model 203.7## #A, Model 203.7## #E

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

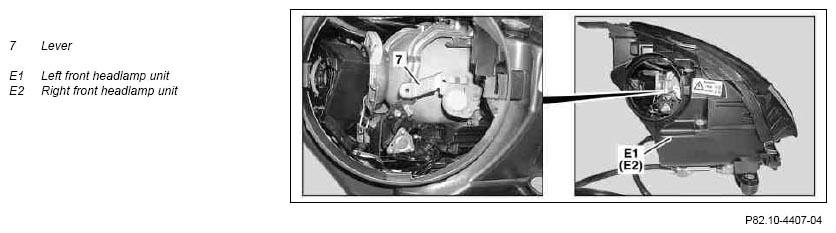

Model 204.0/2 with halogen headlamps, Model 203.7## #E with code (809) Model year 2009 with halogen headlamps

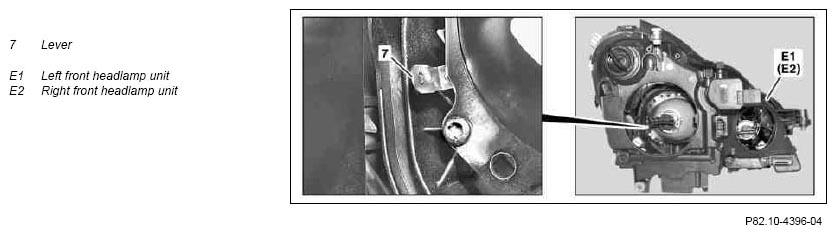

Fig 9: Locating Headlamp Unit Lever - Model 204.0/2, Model 203.7## #E

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 204.0/2/9 with bi-xenon headlamps, model 203.7## #E with code (809) Model year 2009 with bi-xenon headlamps

Fig 10: Locating Bi-Xenon Headlamp Unit Lever - Model 204.0/2/9, Model 203.7## #E

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 204.9 with halogen headlamps

The headlamps are adjusted using the headlamp range controllers.

Procedure:

with normal load, turn headlamp range controller to position 1 After returning to country of registration, turn headlamp range controller back to position 0.
with heavy load, turn headlamp range controller to position 2 After unloading vehicle, turn headlamp range controller back to position 1.

Model 209 with bi-xenon headlamps

Fig 11: Locating Bi-Xenon Headlamp Unit Lever - Model 209

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 209 with bi-xenon headlamps with integrated curve illumination

Fig 12: Locating Bi-Xenon Headlamp Unit Lever With Integrated Curve Illumination - Model 209

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 211 with halogen headlamps

Fig 13: Locating Headlamp Unit Lever - Model 211

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Only one of the two levers (7) must be adjusted. The other lever (7) moves automatically in parallel.

Model 211 with bi-xenon headlamps

Fig 14: Locating Bi-Xenon Headlamp Unit Lever - Model 211

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 211 with code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic)

The headlamps are not adjusted manually. The headlamps are adjusted using STAR DIAGNOSIS.

Procedure:

Menu item "Control units"
Menu item "Design"
Menu item "Left xenon headlamp control unit"
"Control unit adaptations" menu item

Model 207, 212 with halogen headlamps

Fig 15: Locating Headlamp Unit Lever - Model 207, 212

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 212 with bi-xenon headlamp up to 30.11.09 (YoM 09/2)

The headlamp conversion is done with the aid of the STAR DIAGNOSIS.

Procedure:

Menu item "Control units"
Menu item "Design"
Menu item "Left xenon headlamp control unit"
"Control unit adaptations" menu item

Model 207 with bi-xenon headlamp,

Model 212 with bi-xenon headlamp as of 1.12.09 (YoM 09/2)

On vehicles with Intelligent Light System, the headlamps are adjusted in the onboard computer via the instrument cluster.

Model 216

The headlamps are not adjusted manually. The headlamps are adjusted using STAR DIAGNOSIS.

Procedure:

Menu item "Control units"
Menu item "Design"
Menu item "Left xenon headlamp control unit"
"Control unit adaptations" menu item

Model 219 with halogen headlamps

Fig 16: Locating Headlamp Unit Lever - Model 219

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 219 with xenon headlamps

Fig 17: Locating Xenon Headlamp Unit Lever - Model 219

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

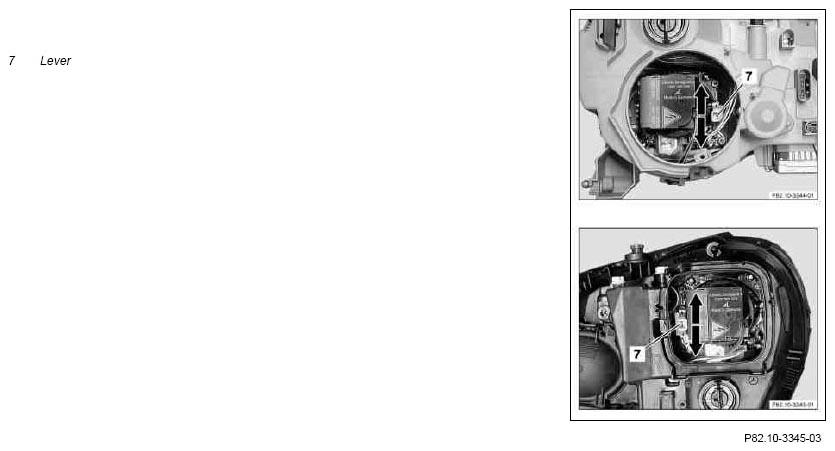

Model 215 with xenon headlamp (top picture)

Model 220 with xenon headlamp (bottom picture)

Fig 18: Locating Xenon Headlamp Unit Lever - Model 215 & 220

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 220 with halogen headlamps

Fig 19: Locating Headlamp Unit Lever - Model 220

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 221 with halogen headlamps

Fig 20: Locating Headlamp Unit Lever - Model 221

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 221 with xenon headlamps

Fig 21: Locating Xenon Headlamp Unit Lever - Model 221

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 230

Shown on vehicle up to 28.1.08

Fig 22: Locating Headlamp Unit Lever - Model 230

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 245 with halogen headlamps

Fig 23: Locating Headlamp Unit Lever - Model 245

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 245 with xenon headlamps

Fig 24: Locating Xenon Headlamp Unit Lever - Model 245

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 251 with halogen headlamps

Fig 25: Locating Headlamp Unit Lever - Model 251

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 251 with xenon headlamps

Fig 26: Locating Xenon Headlamp Unit Lever - Model 251

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
