Interior lighting (IBL), interlinkage of components - GF82.20-P-0002-02T

Networking of components on model 211.0

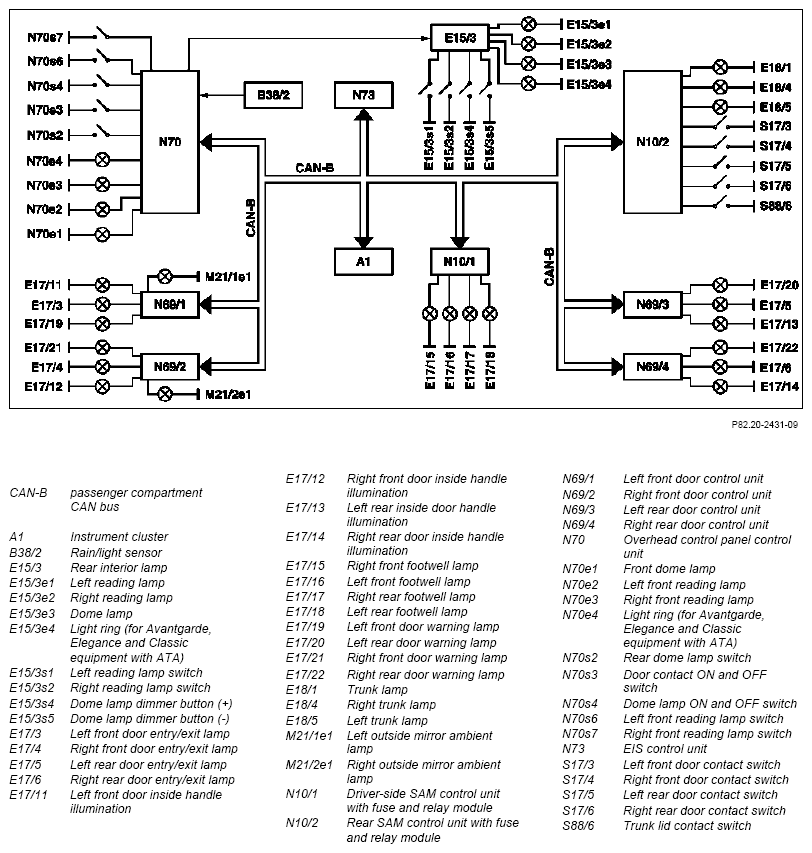

Fig 1: Networking Of Interior Lighting (IBL) Components - Model 211.0

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The following lamps are not listed in the figure:

• Left front vanity mirror illumination (E14/6)
• Right front vanity mirror illumination (E14/7)
• Glove compartment illumination with switch (E13/2)
• Left load compartment lamp (E15/8, on model 211.2)
• Right load compartment lamp (E15/9, on model 211.2)
• Left rear ashtray illumination (E9/8)

In Model 211.6, depending on equipment and special body, the number and position of the interior lamps may vary.

• Right rear ashtray illumination (E9/9)
• Illumination (R3e1)
• Left air outlet illumination (E10/2)
• Right air outlet illumination (E10/3)
• Rear air outlet illumination (E10/5)
