Telediagnosis pushbutton switch(es), location/task - GF82.95-P-4105TM
MODEL 211.0/2 with CODE (359) TELE AID emergency call system with CODE (491) USA version

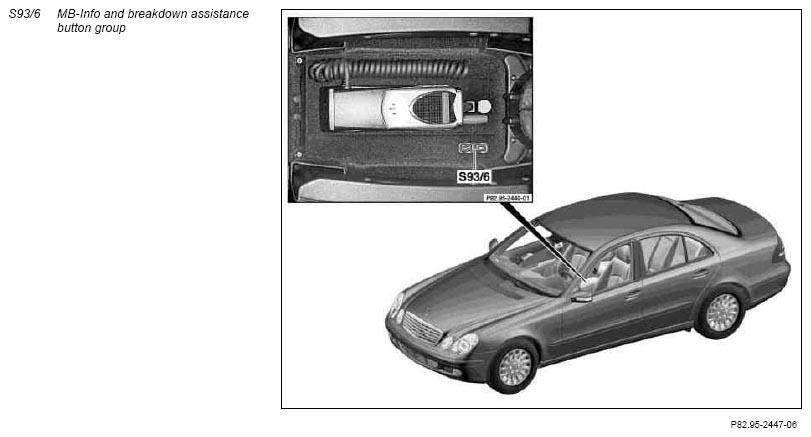

| Telediagnosis pushbutton switch(es), location | The MB-Info and breakdown assistance button group (S93/6) is located in the center console to the left of the UPCI (Universal Portable CTEL Interface) holder (A34/15). |
| Telediagnosis pushbutton switch(es), task | The roadside assistance call or the MB information call can be triggered using the MB-Info and breakdown assistance button group (S93/6) depending on the direction in which it is operated. The relevant operating condition is indicated to the driver by the 2 LED's. |
