TELE AID, location of components - GF82.95-P-0001-01TMA

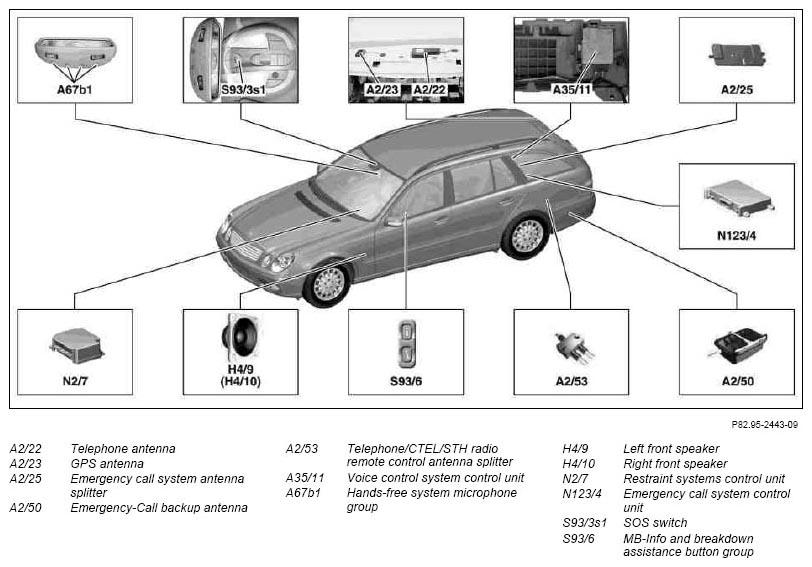

Fig 1: Locating Identifying TELE AID Components

G07275100

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
