COMAND, Entertainment, Navigation, Phone & Tele Aid -- Basic Knowledge -- E350 (211.256)
>>
Basic Knowledge
>>
TELE AID, location of components - GF82.95-P-0001-01T
TELE AID, location of components - GF82.95-P-0001-01T

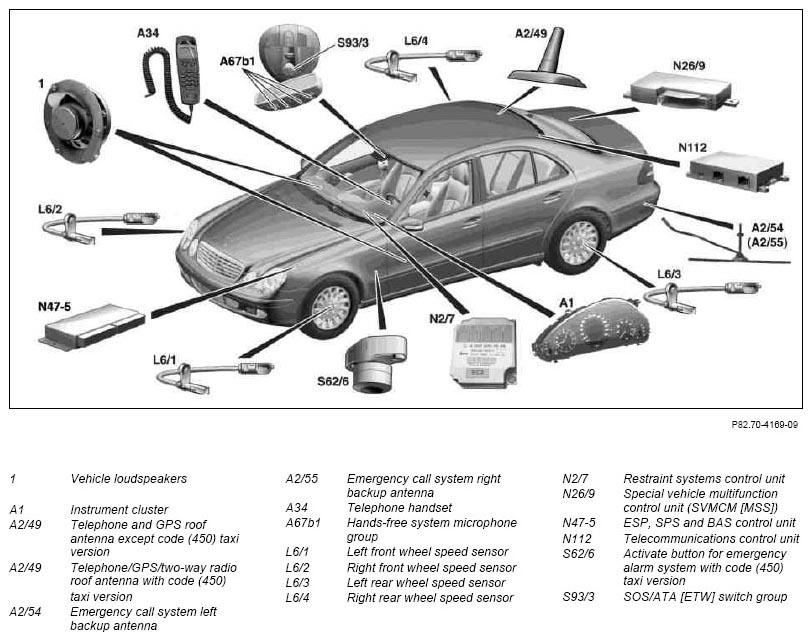

Fig 1: Locating TELE AID Components - Shown On Model 211.0
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Shown on model 211.0
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
