TELE AID substitute antennas, location/task/design/function - GF82.95-P-4102TM

MODEL 211.0/2 with CODE (359) TELE AID emergency call system with CODE (491) USA version

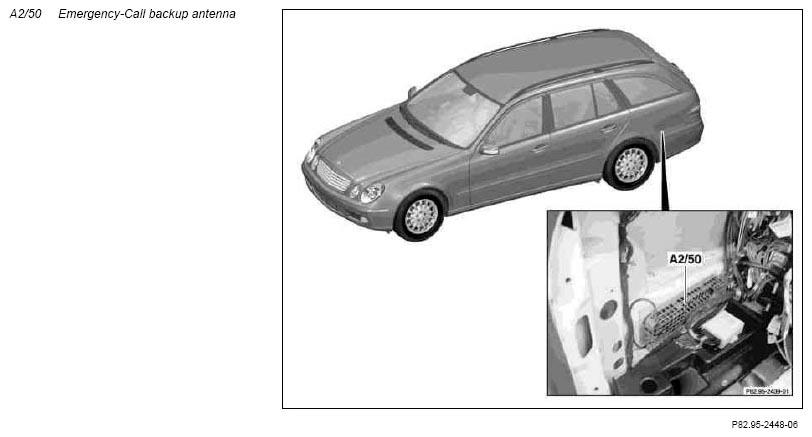

Fig 1: Locating Emergency-Call Backup Antenna

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

TELE AID substitute antennas, location	The emergency call backup antennas (A2/50) are integrated at the side above the vents in the body at rear bumper level.
TELE AID substitute antennas, task	Transmitting and receiving the TELE AID emergency call signals (emergency call/telediagnosis), if the transmiting power of the telephone antenna (A2/22) (model 211.2) or the telephone antenna (A2/49a1) (model 211.0) is inadequate.
TELE AID substitute antennas, design	Antenna tuned to upper MHz range Attached coaxial cable
TELE AID substitute antennas, function	The signals received by the emergency call backup antennas (A2/50) are relayed to the emergency call system control unit (N123/4) via the emergency call system antenna splitter (A2/25) via a coaxial cable.
