TELE AID block diagram - GF82.95-P-0001-02TMA

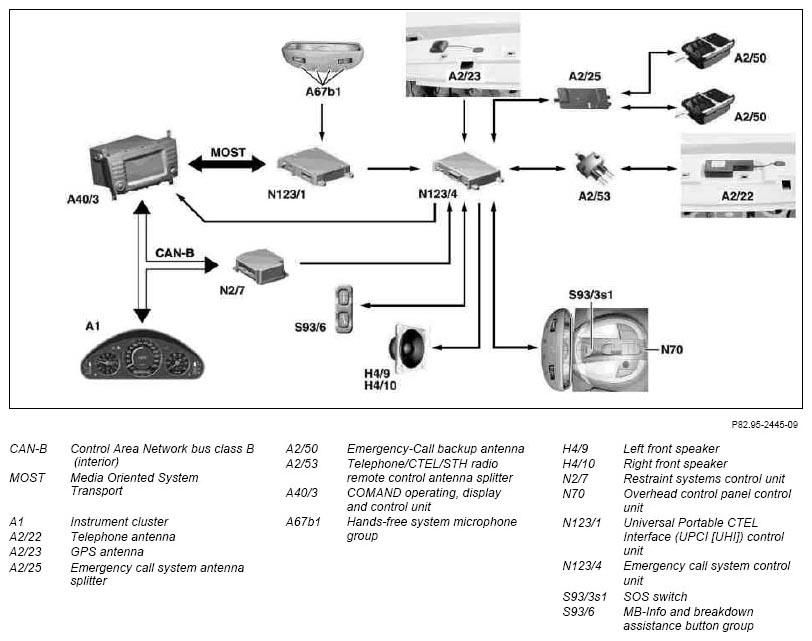

Fig 1: TELE AID Block Diagram

G07275101

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
