SOS switch, location/task/design/function - GF82.95-P-4107TM

MODEL 211.0/2 with CODE (359) TELE AID emergency call system with CODE (491) USA version

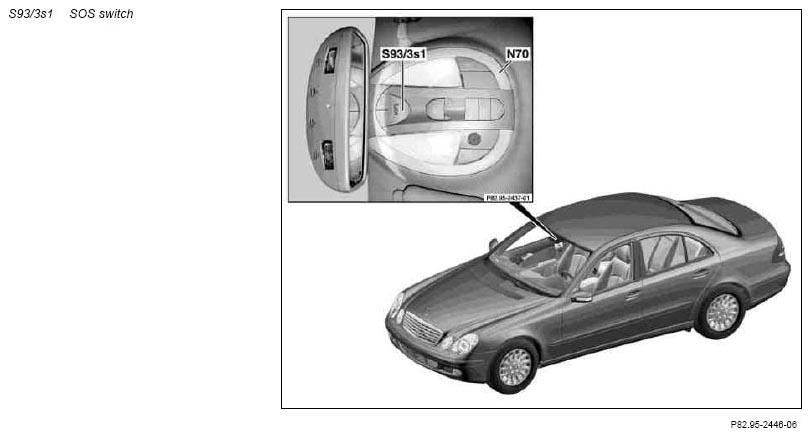

Fig 1: Locating SOS Switch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

SOS switch, location	The SOS switch (S93/3s1) is integrated into the overhead control panel control unit (N70).
SOS switch, task	Triggering a manual TELE AID emergency call Visual feedback of TELE AID operating conditions
SOS switch, design	Integrated LEDs for night illumination (circuit 58d) and as an indication of the operating condition Cap for protecting against unintentional actuation Control resistor parallel to switch contact
SOS switch, function		GF82.95-P-4107-04TM
