Operating and display unit with control unit, component description - GF82.85-P-3133TMU

MODEL 211.0/2 as of 1.7.06 with CODE (530) COMAND APS USA (with navigation system)

Shown on model 211.0

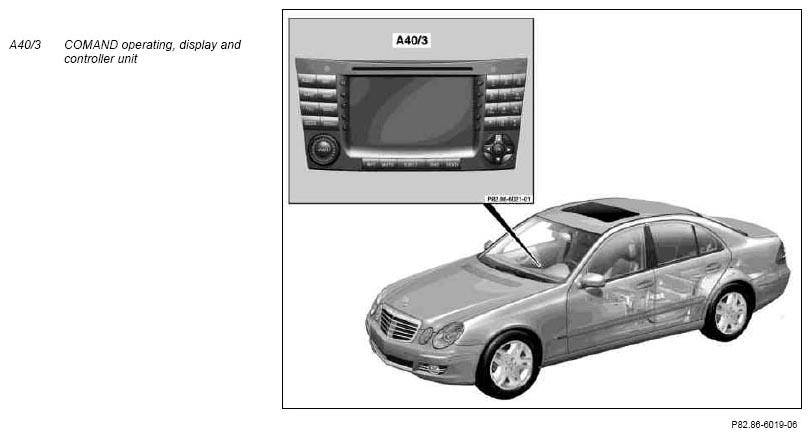

Fig 1: View Of COMAND Operating, Display And Controller Unit - Shown On Model 211.0

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The COMAND operating, display and controller unit is located in the 2-DIN installation opening in the center console.

Design

The following components are integrated in the COMAND operating, display and controller unit:

• Graphics and video capable 6.5" color display
• Multistandard drive for audio CD and MP3-CD-ROM
• Operating unit for controlling the audio, navigation and telematics functions
• Central computer
