Operating and display unit with control unit, component description - GF82.85-P-3133TM

MODEL 211.0/2 as of 1.6.06 with CODE (527) COMAND APS with single DVD drive (with navigation)

Shown on model 211.0

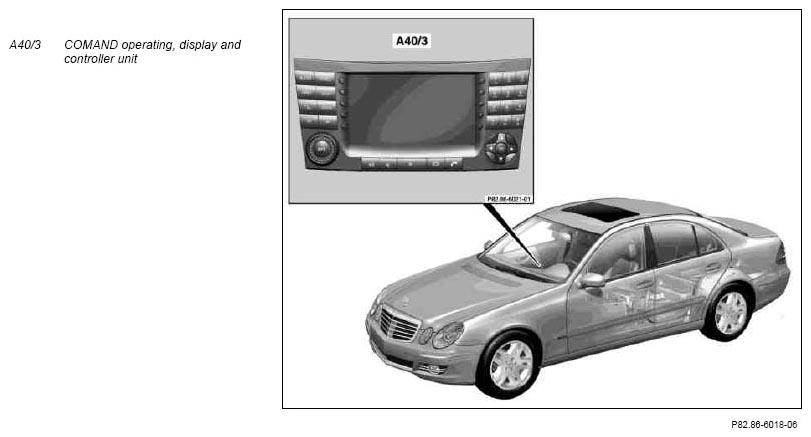

Fig 1: View Of COMAND Operating, Display And Controller Unit - Shown On Model 211.0

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The COMAND operating, display and controller unit is located in the 2-DIN installation opening in the center console.

Task

Central control of the following systems:

• Audio (radio, CD)
• Telephone
• Navigation system
• TV and video DVD
• With code (813) Voice control system (VCS)

Design

The following components are integrated in the COMAND operating, display and controller unit:

• Graphics and video capable 6.5" color display
• Multistandard disk drive for DVD video, audio CD and MP3-CD-ROM CD ROM
• Operating unit for controlling the audio, navigation and telematics functions
• Central computer
