Multifunction steering wheel, networking of components - GF82.90-P-0001-01T

15.03.07

The document has been updated to this date and will no longer be subject to revision.

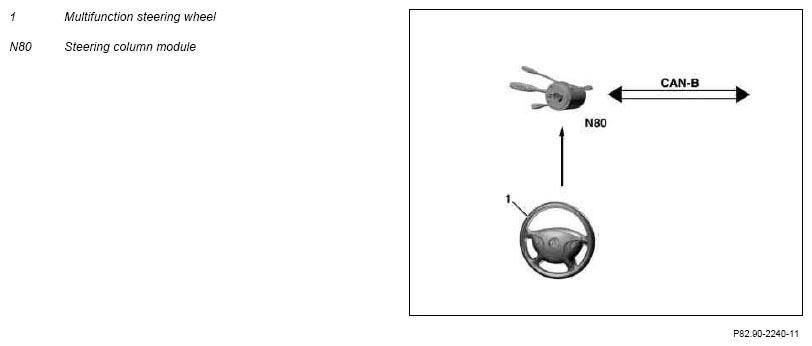

Fig 1: Networking Of Multifunction Steering Wheel And Steering Column Module Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
