Cockpit management and data system (COMAND), location of components - GF82.85-P-0003-01TM

Model 211 except code 498 Japan version and code 494 USA version

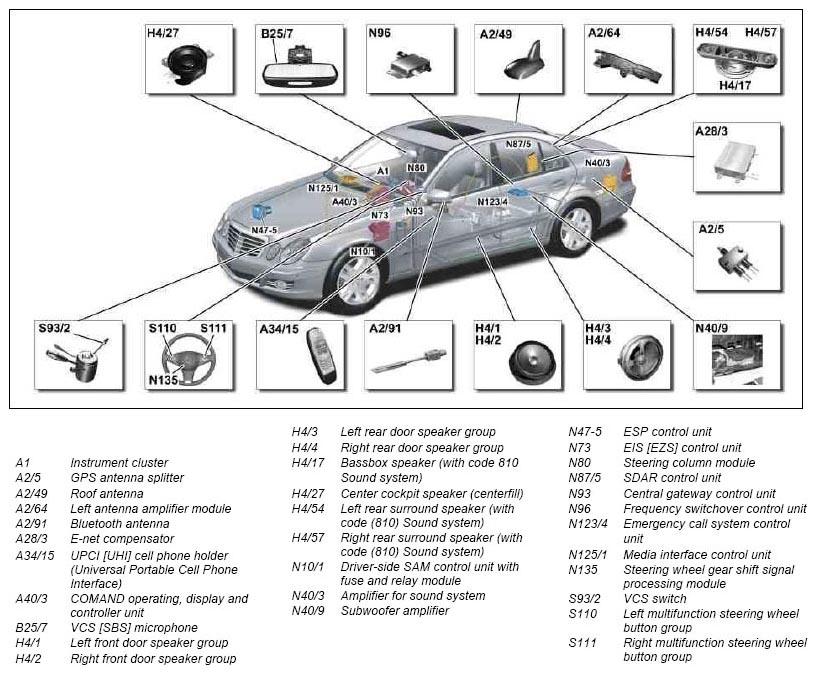

Fig 1: Locating Cockpit Management And Data System (COMAND) Components - Model 211 Except Code 498 Japan Version And Code 494 USA Version

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 211 with code 494 USA version

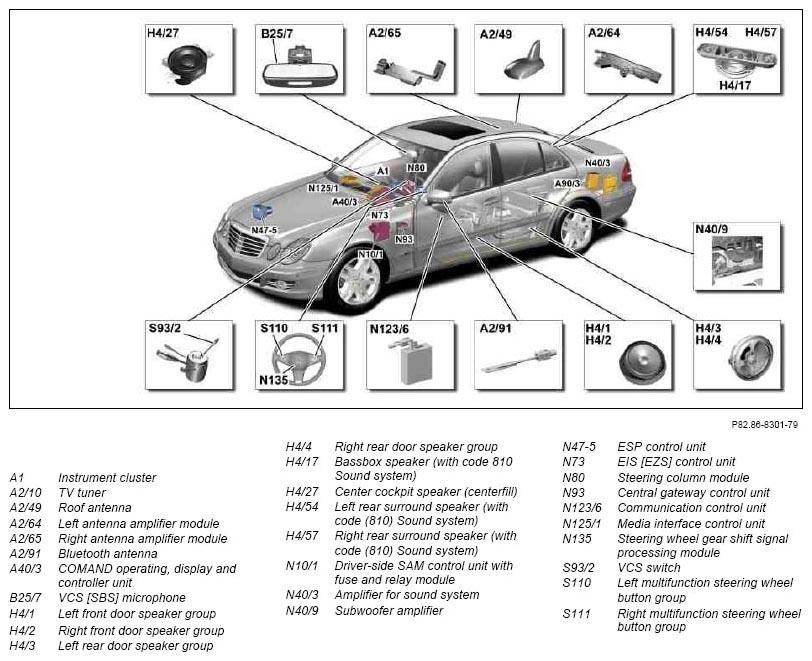

Fig 2: Locating Cockpit Management And Data System (COMAND) Components - Model 211 With Code 494 USA Version

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 211 with code 498 Japan version

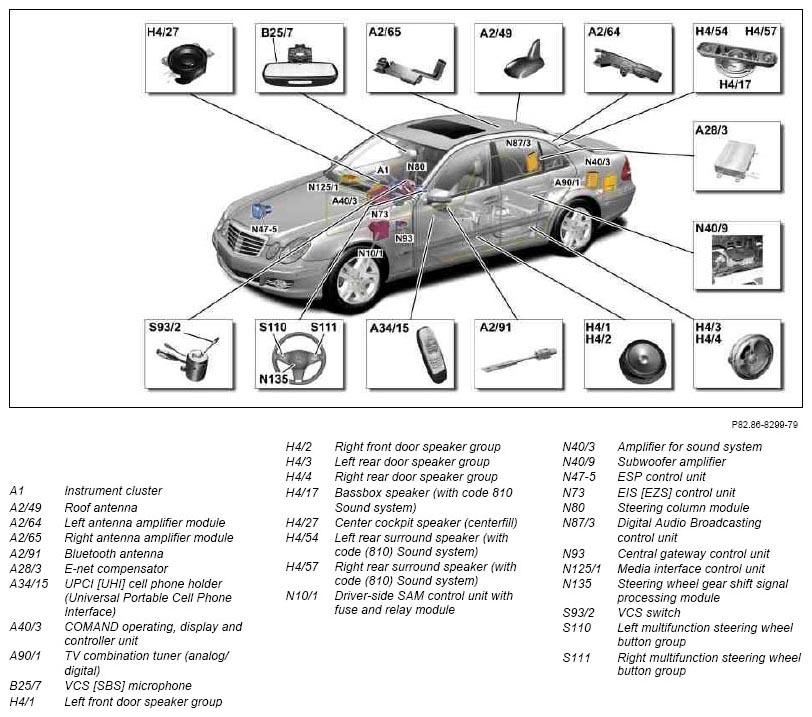

Fig 3: Locating Cockpit Management And Data System (COMAND) Components - Model 211 With Code 498 Japan Version

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
