Cockpit management and data system (COMAND), location of components - GF82.85-P-0003-01TJA

Shown on model 211.0

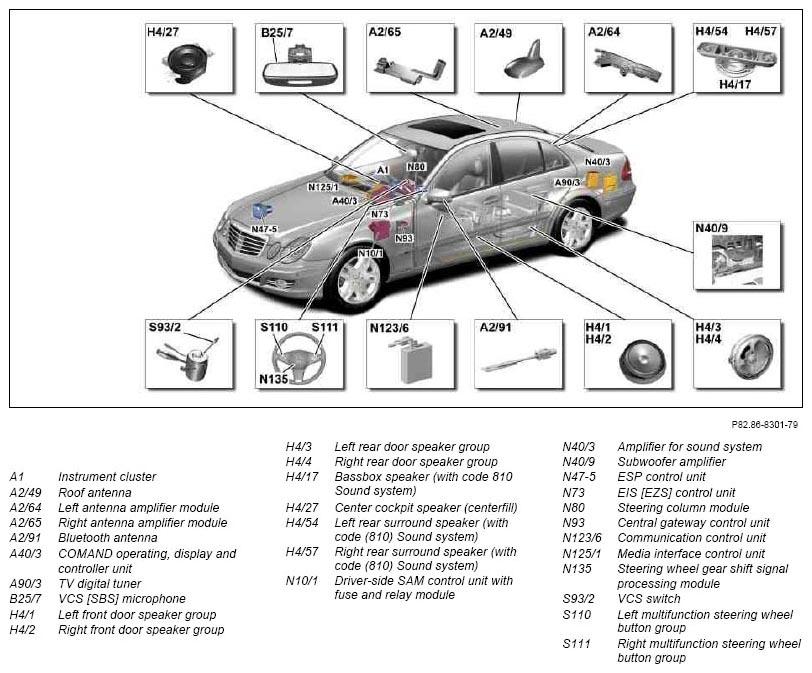

Fig 1: Locating Cockpit Management And Data System (COMAND) Components
G07285176Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
