Cockpit Management and Data System (COMAND) block diagram - GF82.85-P-0003-11TXB

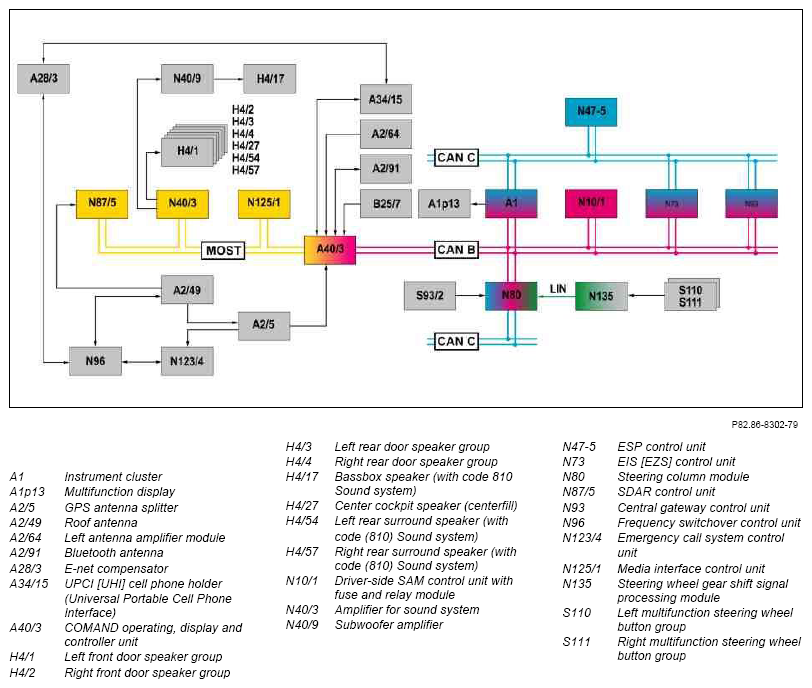

Fig 1: Cockpit Management And Data System (COMAND) Block Diagram - Except Code 498 Japan Version And Code 494 USA Version

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Except code 498 Japan version and code 494 USA version

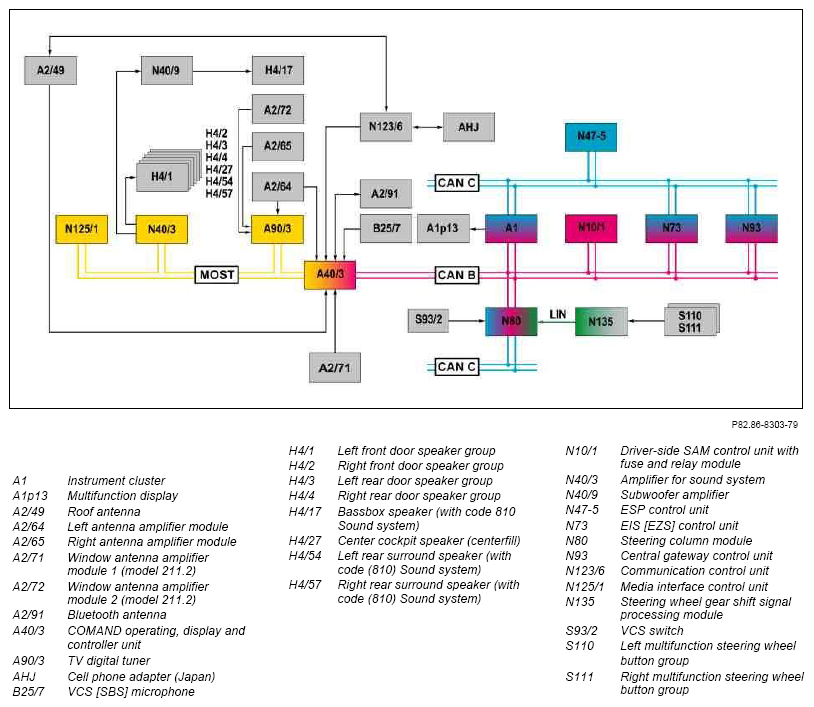

Fig 2: Cockpit Management And Data System (COMAND) Block Diagram - Code 494 USA Version

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Code 494 USA version

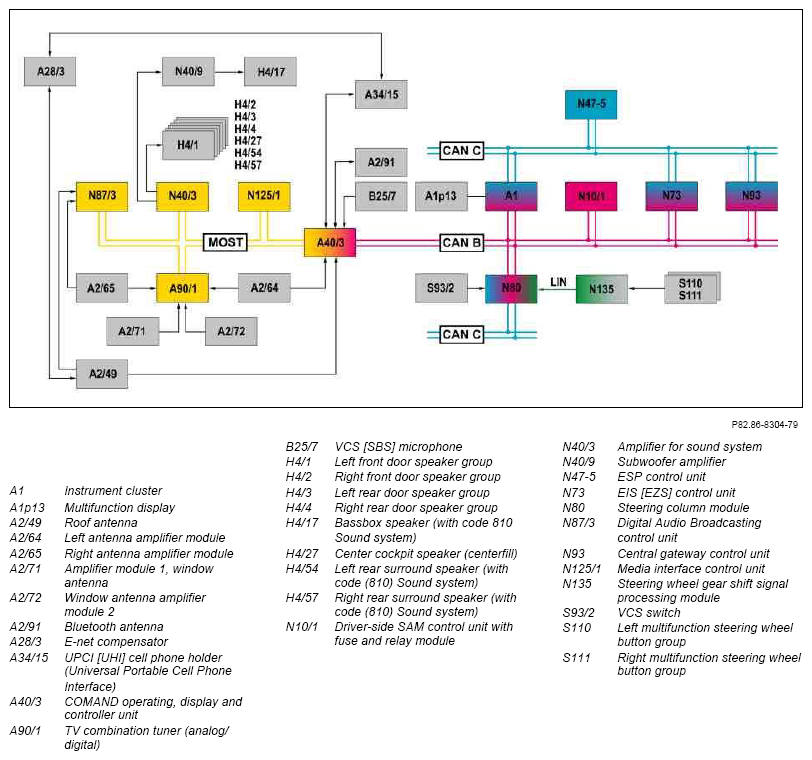

Fig 3: Cockpit Management And Data System (COMAND) Block Diagram - Code 494 USA Version

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Code 498 Japan version
