Cockpit Management and Data System (COMAND) Networking of components - GF82.85-P-0003-10TMU

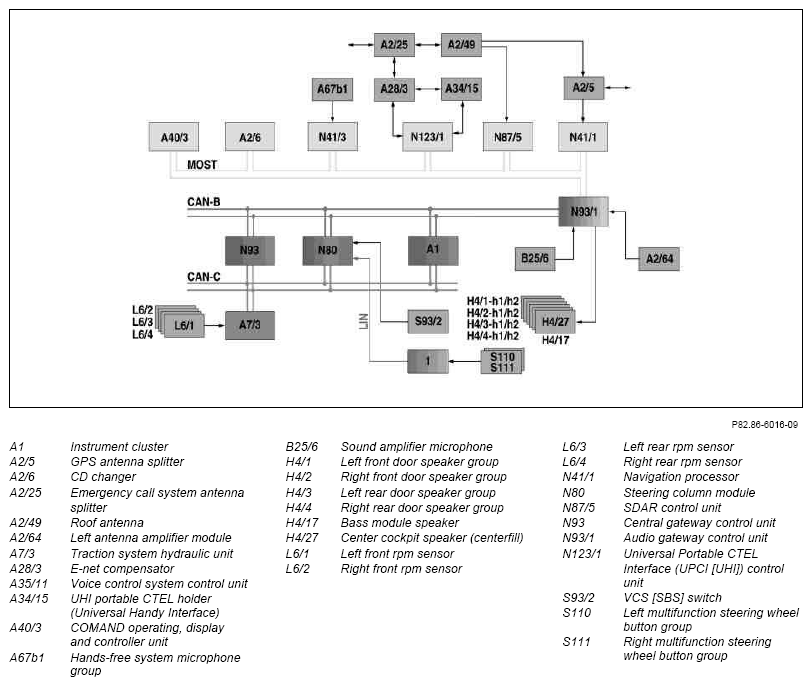

Fig 1: Networking Of Cockpit Management And Data System (COMAND) Components
G07285181Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
