Cockpit Management and Data System (COMAND) Networking of components - GF82.85-P-0003-10TM

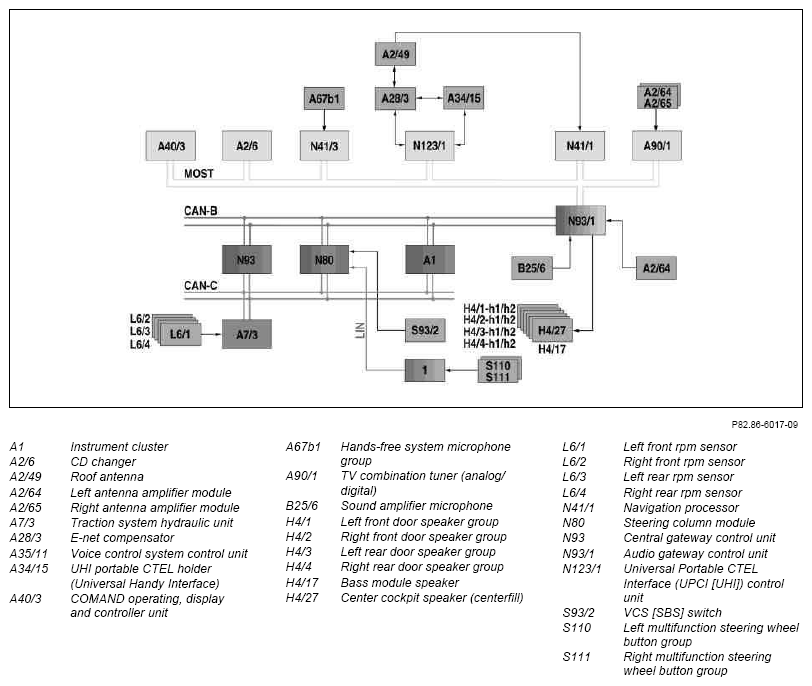

Fig 1: Networking Of Cockpit Management And Data System (COMAND) Components
G07285180Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
