Remove/install paneling for automatic load compartment floor - AR68.80-P-5860T
MODEL 211.2 with CODE (943) Automatically extendable main loading floor
MODIFICATION NOTES
| 8.9.04 | "Remove mount from luggage compartment cover" added | Step 8 |
| Remove/install | |||
|---|---|---|---|

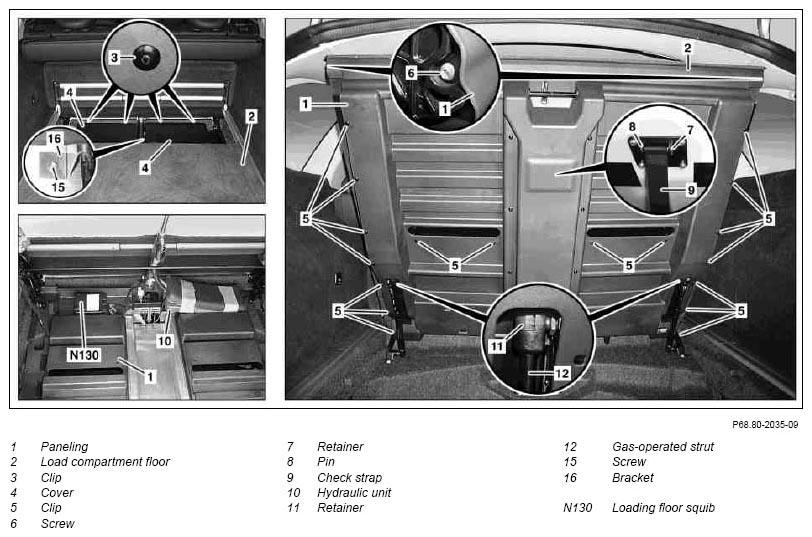

| 1 | Roll up luggage compartment cover | ||
| 2 | Open load compartment floor (2) upwards | ||
| 3 | Unscrew bolts (6) on left and right | ||
| 4 | Remove clips (5) from paneling (1) | ||
| 5 | Open load compartment floor (2) downward | ||
| 6 | Move load compartment floor (2) toward rear | ||
| 7 | Remove clips (3) from covers (4) | ||
| 8 | Unscrew bolt (15) from bracket (16) | ||
| 9 | Open load compartment floor (2) upwards | ||
| 10 | Remove paneling (1) downward and remove retainer (7) | ||
| 11 | Remove check strap (8) from bolt (8) and lay paneling (1) down in load compartment | ||
| 12 | Unclip load compartment control module (N130) from paneling (1), expose electric wiring harness and lay load compartment control module (N130) down to side | ||
| 13 | Remove hydraulic unit (10) from paneling and lay down to side | ||
| Injury hazard Gas-operated struts are under high pressure and can pinch and crush body parts during work | Only remove and install gas-operated struts in the relaxed position and when the components are secured properly. | AS00.00-Z-0012-01A | |
| 14 | Lift retainer (11) with suitable screwdriver and remove gas-operated strut (12) from load compartment floor (2) on left and right | ||
| 15 | Remove covers (4) from load compartment floor | ||
| 16 | Remove paneling (1) from load compartment floor and lay load compartment floor (2) down in load compartment | ||

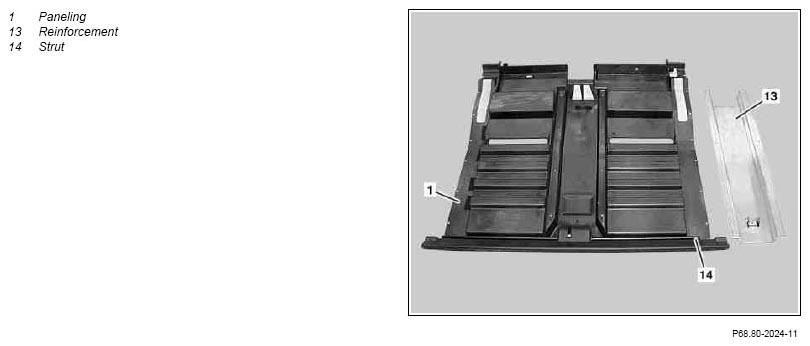

| 17.1 | Remove strut (14) and reinforcement (13) from paneling (1) | Only when replacing paneling (1). | |
| 18 | Install in the reverse order |
