Remove/install lock for load compartment floor - AR68.80-P-5810T

MODEL 211.2 with CODE (943) Automatically extendable main loading floor

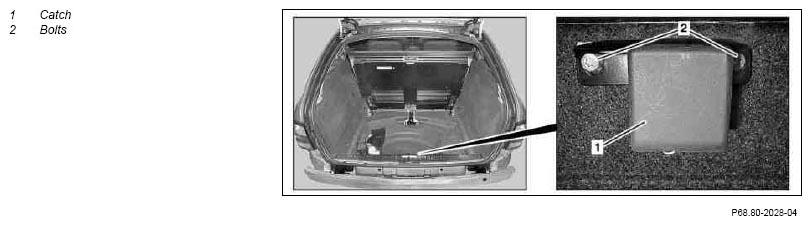

Fig 1: Locating Load Compartment Floor Lock

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Fold load compartment floor toward top	See Operating Instructions
2	Unscrew bolts (2) and remove lock (1)	Installation:  Check function of lock (1) by closing and opening the load compartment floor, adjust lock if necessary (1).	*BA68.80-P-1002-01A
3	Install in the reverse order
