Remove/install limit switch for automatic load compartment floor - AR68.80-P-5893TA

MODEL 211.2 with CODE (943) Automatically extendable main loading floor Loading floor extended limit switch

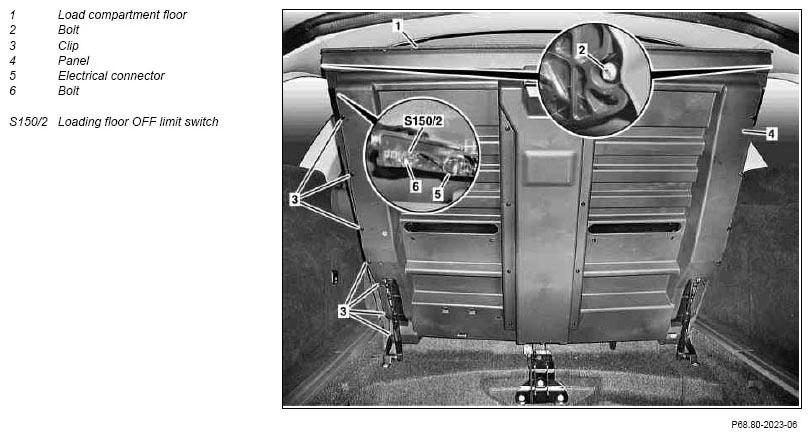

Fig 1: Identifying Automatic Load Compartment Floor Limit Switch Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Unscrew bolts (1) from load compartment floor (2) on left and right
2	Remove clips (3) and lower paneling (4) until loading floor OFF limit switch (S150/2) is accessible.
3	Disconnect electrical connector (5) from loading floor OFF limit switch (S150/2)
4	Unscrew bolt (6) and remove loading floor OFF limit switch (S150/2)	Installation:  Ensure that loading floor OFF limit switch (S150/2) is seated properly.
5	Install in the reverse order
6	Check load compartment floor (1) for proper function
