Remove/install limit switch for automatic load compartment floor - AR68.80-P-5893T

MODEL 211.2 with CODE (943) Automatically extendable main loading floor load compartment floor limit switch retracted

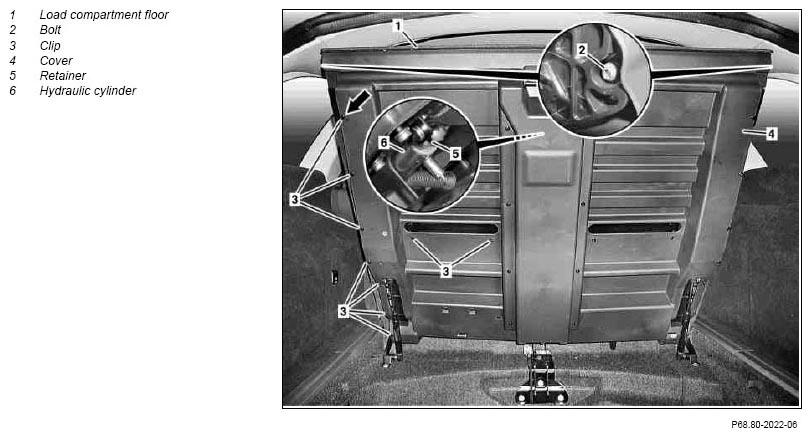

Fig 1: Identifying Automatic Load Compartment Floor Limit Switch Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

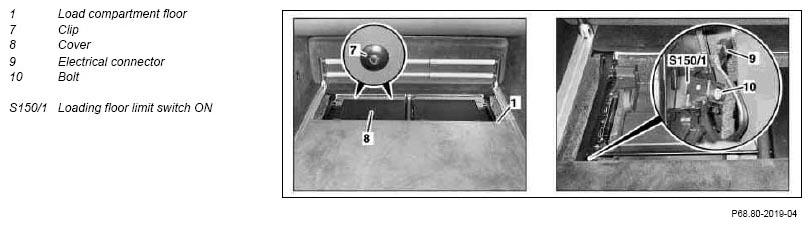

Fig 2: Identifying Automatic Load Compartment Floor Limit Switch Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Open load compartment floor (1) upwards	See operator's manual.
2	Unscrew bolts (1) from load compartment floor (2) on left and right
3	Remove clips (3) and lower cover (4) until retainer (5) on hydraulic cylinder (6) is accessible
4	Lift retainer (5) on hydraulic cylinder (6) with suitable screwdriver and remove hydraulic cylinder (6) from ball head	Installation:  If necessary, move hydraulic cylinder (6) to installation position by actuating the loading compartment floor switch.
5	Install clip (3) (arrow) for fastening cover (4)
6	Lower load compartment floor (1) and pull toward rear
7	Remove clips (7) and cover (8)	Installation:  Ensure correct seating of the cover (8).
8	Disconnect electrical connector (9) from cargo floor ON limit switch (S150/1)
9	Unscrew bolt (10) and remove cargo floor ON limit switch (S150/1)	Installation:  Ensure that cargo floor ON limit switch (S150/1) is seated correctly
10	Install in the reverse order
11	Check load compartment floor for proper function (1)
