Remove/install control module for automatic load compartment floor - AR68.80-P-5885T

MODEL 211.2 with CODE (943) Automatically extendable main loading floor

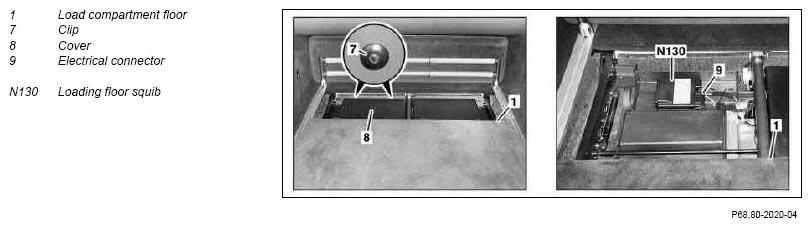

Fig 1: Identifying Automatic Load Compartment Floor Control Module Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

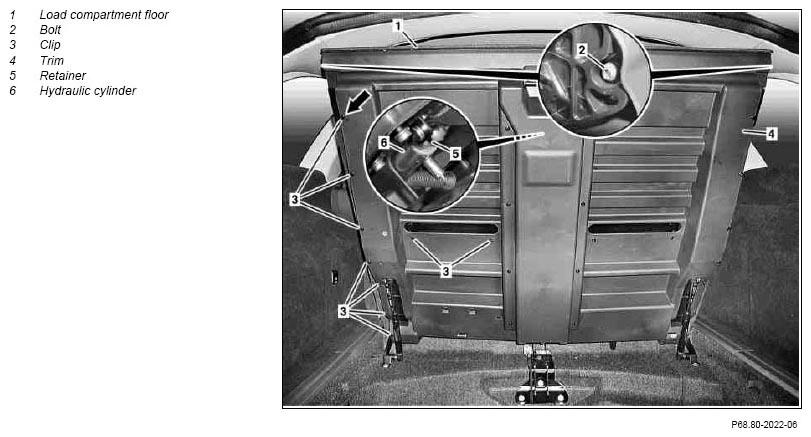

Fig 2: Identifying Automatic Load Compartment Floor Control Module Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Open load compartment floor (1) upwards	See operator's manual.
2	Unscrew bolts (1) from load compartment floor (2) on left and right
3	Remove clips (3) and lower trim (4) until retainer (5) on hydraulic cylinder (6) is accessible
4	Lift retainer (5) on hydraulic cylinder (6) with suitable screwdriver and remove hydraulic cylinder (6) from ball head	Installation:  If necessary, move hydraulic cylinder (6) to installation position by actuating the loading compartment floor switch.
5	Install clip (3) (arrow) for fastening trim (4)
6	Disconnect battery ground cable		AR54.10-P-0003TA
7	Lower load compartment floor (1) and pull toward rear
8	Remove clips (7) and cover (8)	Installation:  Ensure correct seating of the cover (8).
9	Disconnect electrical connector (9) and unclip cargo floor control module (N130)
10	Install in the reverse order
11	Check load compartment floor for proper function (1)
