Remove, install lock cylinder for load compartment floor - AR68.80-P-5812T

MODEL 211.2 up to 31.5.06 except CODE (943) Automatically extendable main loading floor

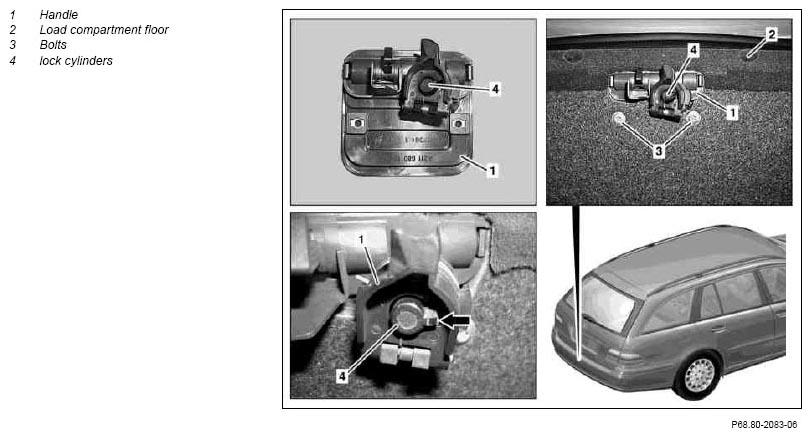

Fig 1: Identifying Load Compartment Floor Lock Cylinder Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing
		When removing lock cylinder (4) from handle (1), handle can be damaged (1).
1	Open load compartment floor (2)
2	Remove handle (1) with lock cylinder (4)	If handle (1) is defective, continue with step 3. If lock cylinder (4) is defective, replace handle (1) and lock cylinder (4) Proceed with step 5.
3	Insert key into lock cylinder (4)
4	Remove lock cylinder (4) together with key	Move lock cylinder (4) to "open" position. Unclip lock hook and remove. Break off retaining lugs (4 each) on lock cylinder (4) in handle (1) Pull lock cylinder (4) out with key. Do not remove key from removed lock cylinder (4), otherwise lock cylinder (4) can be damaged.
	Install
5	Prepare new lock cylinder (4) for installation in handle (1)	Only when replacing lock cylinder (4). Insert key into new lock cylinder (4). Remove protective sleeve from new lock cylinder (4) Do not remove key after removing protective sleeve, otherwise lock cylinder (4) can be damaged.
6	Install lock cylinder (4) in handle (1)	Lock cylinder (4) must be in "open" position. Lug on lock cylinder (4) must be flush with recess (arrow) on handle (1) when installing. Push lock cylinder (4)into handle (1) until retaining lugs arrest.
7	Install handle (1) with lock cylinder (4)
8	Close load compartment floor (2)
