Remove/install license plate lamps - AR82.10-P-5161TA
MODEL 211.2/6
| Remove/Install | |||
| 1 | Remove tailgate handle | AR72.20-P-3650T | |

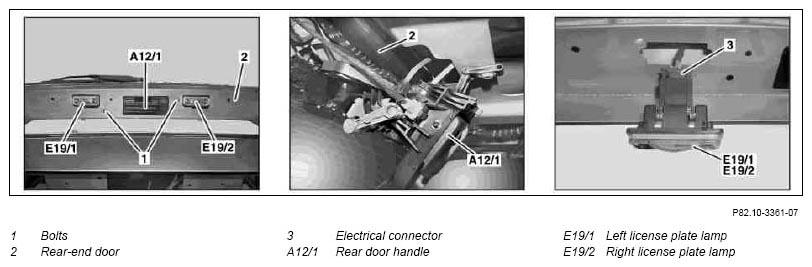

| 2 | Remove bolts (1) and fold rear-end door handle (A12/1) downwards | *BA72.20-P-1008-02A | |
| 3 | Unclip left license plate lamp (E19/1) or right license plate lamp (E19/2) outward from the inside from the rear-end door (2) | ||
| 4 | Disconnect electrical connector (3) and remove left license plate lamp (E19/1) or right license plate lamp (E19/2) | ||
| 5 | Install in the reverse order |
TAILGATE
| Number | Designation | Model 211.2 | Model 211.6 | |
|---|---|---|---|---|
| BA72.20-P-1008-02A | Screw for handle flap on tailgate | Nm | 9 | 9 |
