Remove/install lamp carrier for taillamp - AR82.10-P-4906TA

MODEL 211.2/6

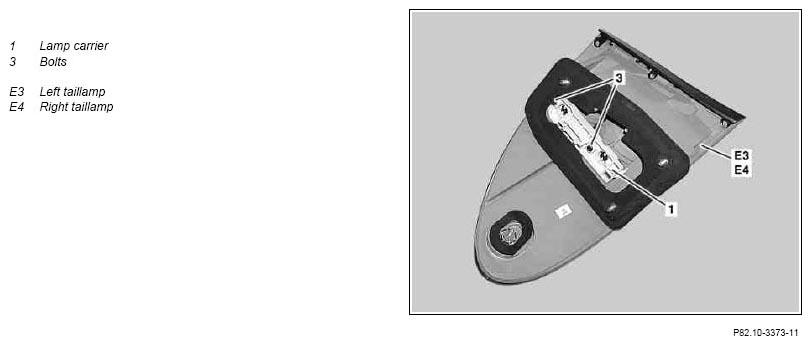

Shown on left taillamp (E3)

Fig 1: Identifying Lamp Carrier, Bolts, Left Taillamp And Right Taillamp

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

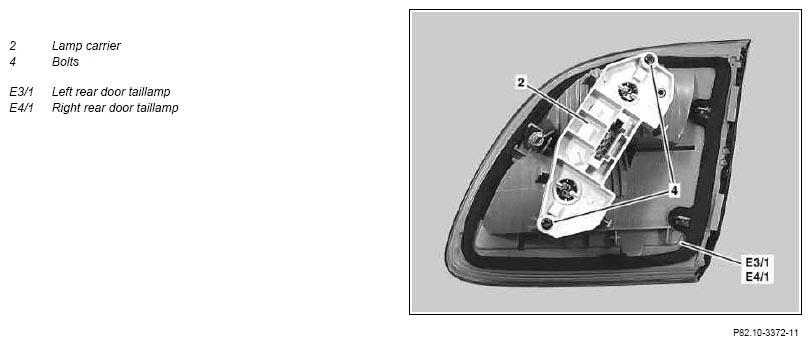

Shown on taillamp for left rear-end door (E3/1)

Fig 2: Identifying Lamp Carrier, Bolts, Left Rear Door Taillamp And Right Rear Door Taillamp

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1.1	Remove left taillamp (E3) or right taillamp (E4) from sidewall	Only applies to removal of lamp carrier (1) of left taillamp (E3) or right taillamp (E4).	AR82.10-P-4920T
2.1	Undo screws (3) and remove lamp carrier (1) from left taillamp (E3) or right taillamp (E4)	Only applies to removal of lamp carrier (1) of left taillamp (E3) or right taillamp (E4).
3.1	Remove left rear-end door taillamp (E3/1) or right rear-end door taillamp (E4/1)	Only applies to removal of lamp carrier (2) of left rear-end door taillamp (E3/1) or right rear-end door taillamp (E4/1).	AR82.10-P-4925T
4.1	Undo screws (4) and remove the lamp carrier (2) of the left rear-end door taillamp (E3/1) or right rear-end door taillamp (E4/1)	Only applies to removal of lamp carrier (2) of left rear-end door taillamp (E3/1) or right rear-end door taillamp (E4/1).
5	Install in the reverse order
