Remove/install fiber optic cable for the Media Oriented System Transport (MOST) - AR82.60-P-0001TG
MODEL 211.0/2 up to 1.6.08 except CODE (809) Model year 2009 with CODE (527) COMAND APS (with navigation) with CODE (530) COMAND APS USA (with navigation system) with CODE (860) TV tuner between navigation processor and TV tuner
Shown on model 211.0

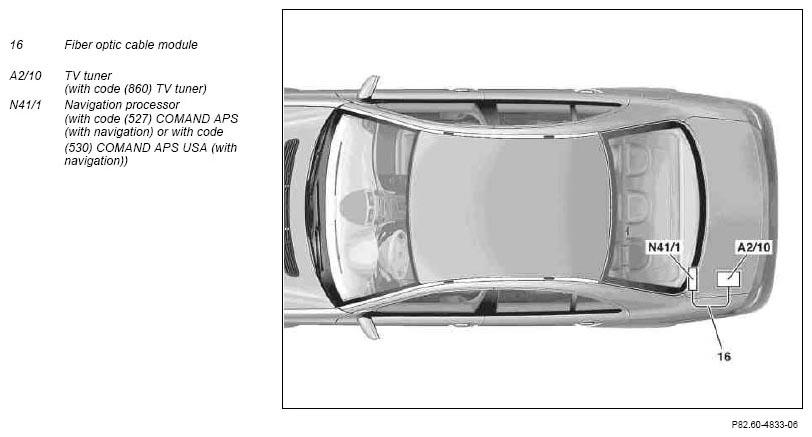

Fig 1: Identifying Fiber Optic Cable Module, TV Tuner And Navigation Processor - Shown On Model 211.0

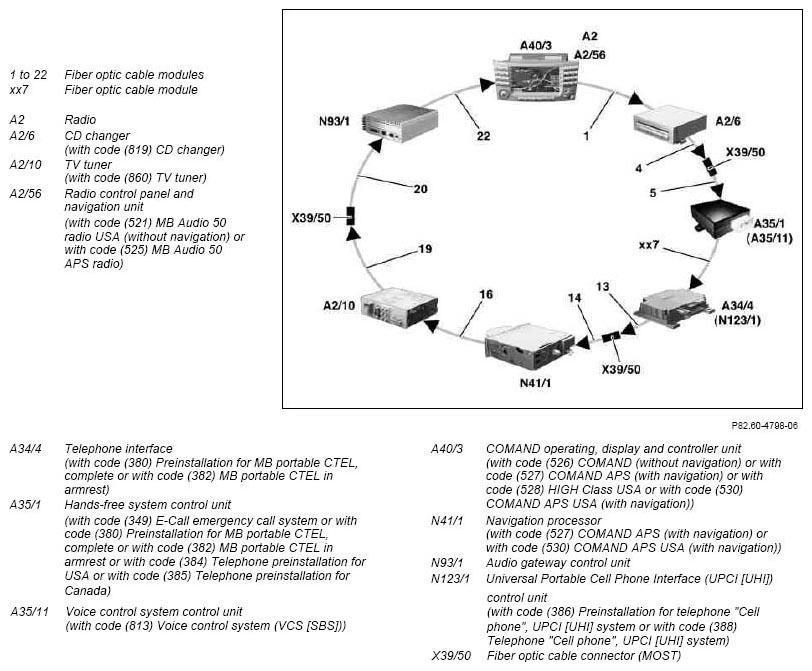

Ring sequence of the fiber optic cable for the Media Oriented System Transport (MOST), shown for maximum equipment
| Remove/install | |||
| Notes on removal/installation of the fiber optic cable for the Media Oriented System Transport (MOST) | AH82.60-P-0001-06T | ||
| 1.1 | Remove left side inner paneling of load compartment | Model 211.2 | AR68.30-P-1180T |
| 1.2 | Remove side paneling in left side of luggage compartment | Model 211.0 without code (287) Through-loading feature and without code (924) Bivalent natural gas drive | AR68.30-P-4800T |
| Model 211.0 with CODE (287) Through-loading feature | AR68.30-P-4800TA | ||
| Model 211.0 with code (924) Bivalent natural gas drive | AR68.30-P-4800TB | ||
| 2 | Remove insulation mat over control unit carrier in left side of luggage compartment | Model 211.2 | |
| 3 | Remove fiber optic cable module for Media Oriented System Transport (MOST) |
AR82.60-P-0001-01TG | |
| Notes on avoiding damage to fiber optic cables during repair work | AH82.60-P-0001-05AK | ||
| 4 | Install in the reverse order | ||
| 5 | Connect STAR DIAGNOSIS, read out fault memory and erase if necessary | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 6 | Carry out start-up and function test |
