Check rear-end door wiper arm - AR82.30-P-6950-01T

TEST AND ADJUSTMENT VALUES FOR REAR-END DOOR WIPER ARM

Number	Designation			Model 168	Model 202.07/08/09/18/19
BE82.30-P-1001-01F	Angle of incidence for rear-end door wiper arm in reversing position	Left-hand drive vehicle	∠°	-1.0 to +2.0	-1.5 to -4.5
BE82.30-P-1001-01F		Right-hand drive vehicle	∠°	-1.0 to -2.0	+1.5 to +4.5
BE82.30-P-1002-01F	Angle of incidence for rear-end door wiper arm in park position	Left-hand drive vehicle	∠°	+5.0 to +6.0	+1.5 to +4.5
BE82.30-P-1002-01F		Right-hand drive vehicle	∠°	-5.0 to -6.0	-1.5 to -4.5

TEST AND ADJUSTMENT VALUES FOR REAR-END DOOR WIPER ARM

Number	Designation			Model 203.2
BE82.30-P-1001-01F	Angle of incidence for rear-end door wiper arm in reversing position	Left-hand drive vehicle	∠°	-1.0 to -5.0
BE82.30-P-1001-01F		Right-hand drive vehicle	∠°	+1.0 to +5.0
BE82.30-P-1002-01F	Angle of incidence for rear-end door wiper arm in park position	Left-hand drive vehicle	∠°	+1.5 to +4.5
BE82.30-P-1002-01F		Right-hand drive vehicle	∠°	-1.5 to -4.5

TEST AND ADJUSTMENT VALUES FOR REAR-END DOOR WIPER ARM

Number	Designation			Model 210.2	Model 211.2
BE82.30-P-1001-01F	Angle of incidence for rear-end door wiper arm in reversing position	Left-hand drive vehicle	∠°	-1.5 to -4.5	-1.5 to -4.5
BE82.30-P-1001-01F		Right-hand drive vehicle	∠°	+1.5 to +4.5	+1.5 to +4.5
BE82.30-P-1002-01F	Angle of incidence for rear-end door wiper arm in park position	Left-hand drive vehicle	∠°	+1.5 to +4.5	+1.5 to +4.5
BE82.30-P-1002-01F		Right-hand drive vehicle	∠°	-1.5 to -4.5	-1.5 to -4.5

Fig 1: Identifying Adjustment Tool Set (211 589 02 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The test of the wiper arm angle of incidence for the rear-end door in the reversing and park position determines whether the rear-end door wiper arm needs to be adjusted.

Insert adapter (C) into the guide (arrow) of the angle gauge (A) and fasten with knurled bolt to angle gauge (A).
Use adapter (C) and angle gauge (A) from the adjustment tool set.

Fig 2: Inserting Adapter Into Guide Of Angle Gauge
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211.2, rear-end door wiper arm (1) in park position
Clamp adapter (C) with angle gauge (A) by tightening the knurled screw (2) at the head of the rear-end door wiper arm (1).
Lower rear-end door wiper arm (1) until all three contact points on the base of the angle gauge (A) touch the rear window.
Read angle of incidence for rear-end door wiper arm (1) on the dial of the angle gauge (A) and note down.
Raise rear-end door wiper arm (1) and remove angle gauge (A) with adapter (C).
Fit wiper blade.
See operator's manual.

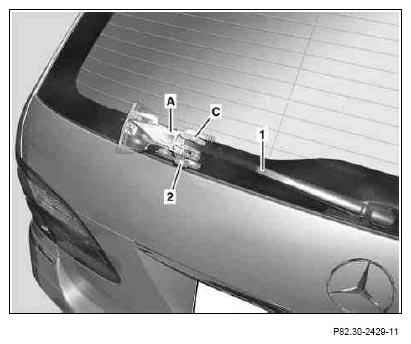

Fig 3: Clamping Adapter With Angle Gauge At Head Of Rear-End Door Wiper Arm
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Switch on ignition (circuit 15 or circuit 15R), allow rear-end door wiper arm (1) to move back to park position and switch off ignition again.
Mount angle gauge (A) with adapter (C) onto rear-end door wiper arm (1).
Read off angle of incidence for rear-end door wiper arm (1) on dial of angle gauge (A), write it down, and compare it to the test and adjustment values.
Raise rear-end door wiper arm (1) and remove angle gauge (A) with adapter (C).
