Remove/install roller blind from stowage compartment in center console - AR68.20-P-2466T

MODEL 211 with CODE (494) USA version except CODE () as of Model Year 2006

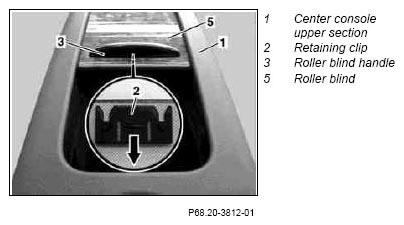

Fig 1: Identifying Center Console Roller Blind Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

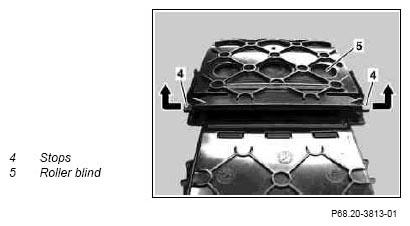

Fig 2: Identifying Center Console Roller Blind Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove center console upper section (1).	Do not remove center console lower section.	AR68.20-P-2000T
2	Lay center console upper section (1) down on clean surface	Avoid damage.
3	Slide retaining clip (2) toward rear (arrow) and remove roller blind handle strip (3)
4	Turn center console upper section (1).
5	Carefully lift stops (4) (arrows) and slide roller blind (5) out of guide rail.	Risk of fracturing!
6	Install in the reverse order
